Enhance Your Control System with Versatile Timing Capabilities!

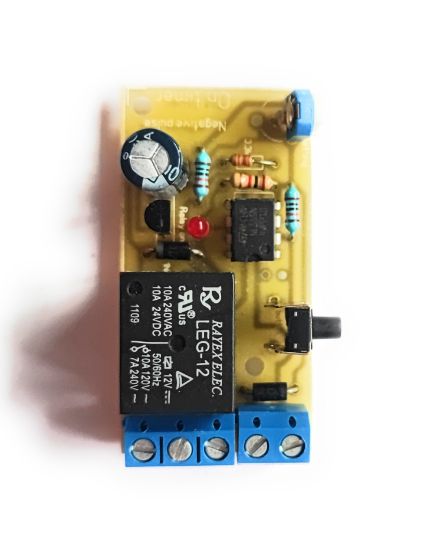

Introducing our Timer Relay, a compact and efficient solution designed to provide precise timing intervals for a variety of applications. With adjustable timing intervals ranging from 12 to 1200 seconds and the ability to operate in both ON and OFF modes, this relay offers flexibility and convenience for your projects.
Key Features:
🔌 Power Supply: Operates on a 12V DC power supply, ensuring compatibility with a wide range of systems and equipment.
⏱️ Adjustable Time Interval: Customize the delay time according to your specific requirements, with intervals ranging from 12 to 1200 seconds.
⚡ High Current Rating: Capable of handling a maximum peak current of 10A at 250V, providing reliable performance for your applications.
💡 LED Indication: Built-in LED indicator provides visual confirmation of the timer's operation, ensuring easy monitoring.
🔘 START Button: Convenient START button initiates the timing process, simplifying operation and control.
📏 Compact Design: With dimensions of 51mm x 26mm, the timer relay features a compact footprint, making it easy to integrate into your setup.
Dual Functionality:
This timer relay offers versatile functionality, with two modes of operation:
Delay On: Set the relay to activate after a specified delay period (12 to 1200 seconds), perfect for applications requiring delayed activation.
Delay Off: Configure the relay to deactivate after a set delay period (12 to 1200 seconds), ideal for applications requiring delayed shutdown.
Principle of Operation:
Upon powering on, the relay awaits a pulse from the START button. Once initiated, the relay closes and remains closed for the set time interval (up to 1200 seconds). After the set time elapses, the relay opens until power is turned off, ready for the next cycle.
Package Contents:
- Timer Relay
- Instruction Manual and Wiring Diagram
Upgrade your control system with precise timing capabilities using our Timer Relay. Experience enhanced control and efficiency in your projects. Order now and elevate your projects to the next level! 🕒🔌
