🔄 Polarity Reversal:
The module easily reverses the polarity of your DC motor when it receives a 12V signal at the control input.
🔋 Universal Power Supply:
Powered by a stable 12V DC input, the module supports a wide range of input voltages: from 1 to 24V DC and 1 to 120V AC, ensuring compatibility with various power sources.
Output:
With an output power of 1 to 24V DC at 2A and 1 to 120V AC at 1A (depending on the input voltage), the module can control motors up to 24W for DC and 120W for AC.

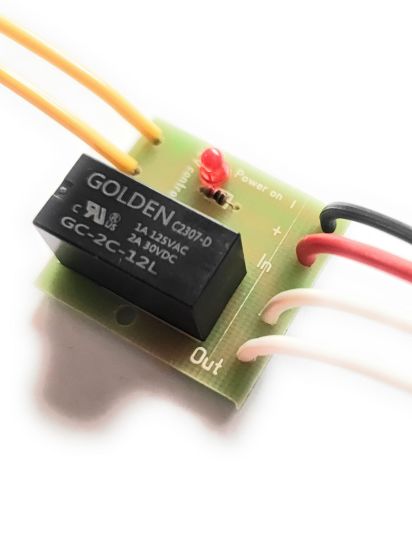

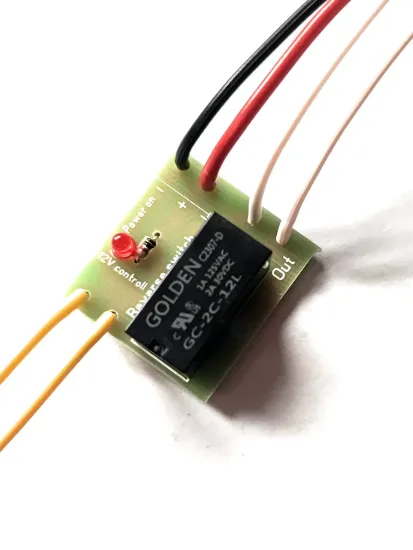

🔧 DPDT Relay:
Еquipped with a powerful DPDT relay rated at 24VDC and 2A for DC motors and 120V AC and 1A for AC motors, the module ensures smooth and reliable operation.
📏 Compact Design:
Measuring just 30 x 29 x 18 mm, the module delivers high performance in a compact package, perfect for installations in limited spaces.
🚗 Wide Applications:
From small DC motors up to 24W to larger AC motors up to 120W, the module is versatile enough to handle a variety of motor types and applications.
🔧 Easy Installation:
With detailed wiring instructions, installation is hassle-free. Connect the power to the input terminals, then connect your DC motor to the output. When a 12V DC signal is applied to the control input, the motor’s direction automatically changes.
📦 Package Includes:
1. Timer
2. User manual and а wiring diagram
