Car switch time relay timer with push button, delay OFF 12-1200sec, 10A 12V
Limited Time Offer!
Hurry, our best price won’t last long! Click to check out the exclusive deal: Click here to see the best price
Product Description and User Guide
This compact and efficient delay OFF timer provides precise and adjustable timing intervals for various control system applications. It operates on a 12V DC power supply and offers both Delay ON and Delay OFF modes with a customizable time range of 12 to 1200 seconds. The device features a high current handling capability, LED indication for operational status, and a manual START button. Its compact design facilitates easy integration into existing systems.
Technical Specifications:
- Power Supply: 12V DC
- Timing Interval: Adjustable, 12 - 1200 seconds
- Maximum Switching Current: 10A at 250V AC (peak)
- Operating Modes: Delay ON, Delay OFF
- Indication: LED status indicator
- Control: START button for initiating the timing cycle
- Dimensions: 51mm x 26mm
Operating Modes:
- Delay ON: Upon receiving a trigger signal (pulse from the START button after power-on), the output relay will activate after the pre-set time interval has elapsed.
- Delay OFF: Upon receiving a trigger signal (pulse from the START button after power-on), the output relay will immediately activate. After the pre-set time interval has elapsed, the output relay will deactivate.
Principle of Operation (Delay OFF Mode):
- Power Connection: Connect the timer to a 12V DC power supply according to the wiring diagram.
- Initialization: Upon power-up, the timer will be in a standby state.
- Start Trigger: A momentary pulse applied to the START button initiates the timing cycle.
- Relay Activation: Immediately after the START button is pressed, the output relay will close (activate). The LED indicator will illuminate.
- Timing Period: The relay will remain closed for the duration of the pre-set time interval (adjustable between 12 and 1200 seconds).
- Relay Deactivation: Once the set time interval expires, the output relay will open (deactivate), and the LED indicator will turn off.
- Cycle Reset: The timer will remain in this deactivated state until the power supply is interrupted and then reapplied, or another pulse is received at the START button after a power cycle.

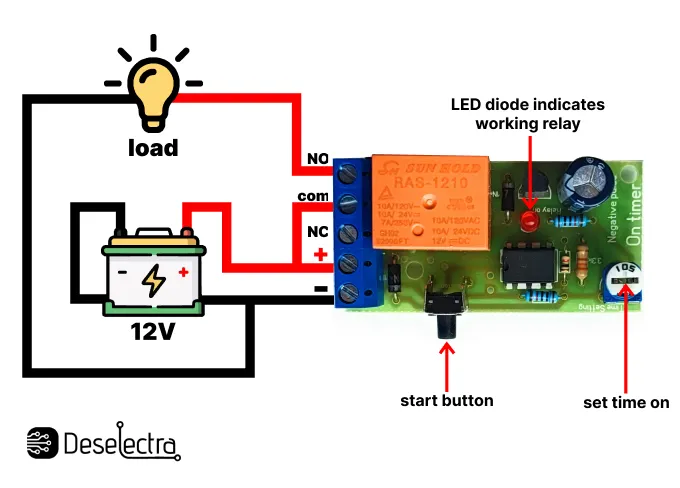

Wiring Diagram:
Refer to the included wiring diagram for proper electrical connections. Ensure that the power supply is disconnected before making any connections.
Package Contents:
- Delay OFF Timer
- Instruction Manual and Wiring Diagram
Note: Ensure that the load connected to the relay does not exceed the specified maximum switching current and voltage. Incorrect wiring or overloading the relay may cause damage to the device.
