Item Description:
🔧 Adjustable Precision: With a range of 0 to 40 seconds, this time relay offers precise timing adjustments to suit your specific needs, ensuring optimal performance every time.

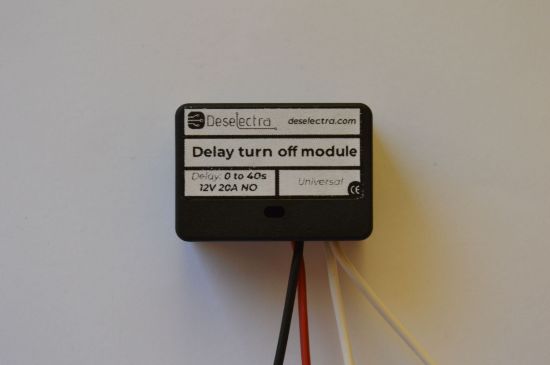

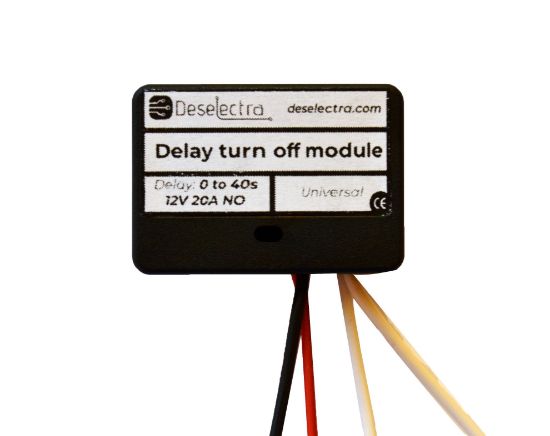

📏 Compact Design: Measuring just 40mm in length, 27mm in width, and 21mm in height (including the box), this timer relay is compact and space-saving, perfect for installations where space is limited.
⚡️ Built-in Protection: Powered by a 12V DC supply, this relay features built-in protection against reverse supply voltage, providing added safety and peace of mind during operation.
🔌 Easy Installation: Wired with 10cm wires for convenience, including black (-) and red (+) wires for power supply, and two white wires for the normally open (NO) contact of the relay.
🔧 Versatile Functionality: Equipped with a NO contact rated at 20A/12V DC, this relay offers reliable performance for various applications, from automotive to industrial.
⏱️ Time Adjustment: Adjust the timing effortlessly using the trimmer, allowing you to fine-tune the relay to your desired duration with ease.
🔄 Operational Principle: Upon power activation, the relay engages, closing the NO contact and opening the NC contact. It maintains this position until the set time elapses. The cycle repeats upon restarting the power supply.
📦 Package Contents: The Mini Timer Relay comes complete with instructions for use and a wiring diagram, ensuring hassle-free installation and operation right out of the box.
Upgrade your delay off timing control with the Boxed Car Timer Switch Time Relay Kit - your reliable partner for precision timing in any application! 🚗💡🔧
Instruction for use and wiring diagram
