💡 Adjustable Airbag Simulator - Practical Solution for Diagnostics
🔹 Product Overview

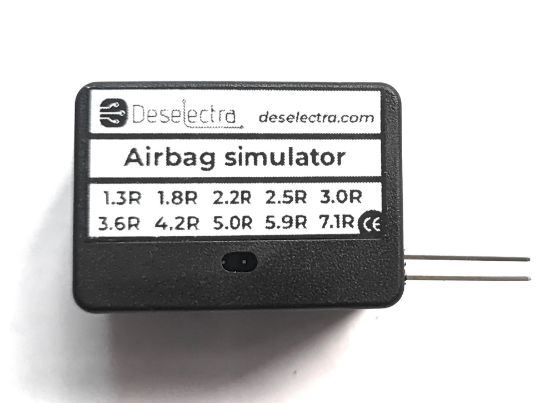

Introducing the adjustable airbag simulator with resistance ranging from 1.3 to 7.1 ohms – ready for immediate use! This is an ideal tool for situations where the exact airbag resistance value is unknown.
🔹 Resistance Settings
The simulator allows you to select from various values: 1.3R, 1.8R, 2.2R, 2.5R, 3.0R, 3.6R, 4.2R, 5.0R, 5.9R, 7.1R
👉 Simply move the connector to the pins that match the chosen value on the board!
🔹 Additional Features
- Built-in 1A fuse – Protects your system from overload
- Compact dimensions: 40 mm x 28 mm x 21 mm
- Pin spacing: ~2.54 mm
- Pin length: 10 mm
🛠 How It Works
Designed specifically for diagnostic purposes, the simulator makes the airbag computer recognize a connected component. If there are no other issues, the airbag light should turn off.
Ideal for:
- Testing the airbag system functions before installing a new airbag
- Diagnosing the SRS system if no spare airbag is available
📌 Installation Instructions
- Set the resistance value and position the connector.
- Connect to the two connectors typically linked to the driver’s airbag.
⚠️ Important Notes
- For front airbags with two inflators, you will need two simulators.
- Most vehicles require an airbag computer reset after simulation to turn off the dashboard indicator.
📦 Package Includes
This simulator is a reliable tool for simulating and diagnosing driver, passenger, side, curtain, knee airbags, seatbelt pretensioners, and other components in the SRS system.
