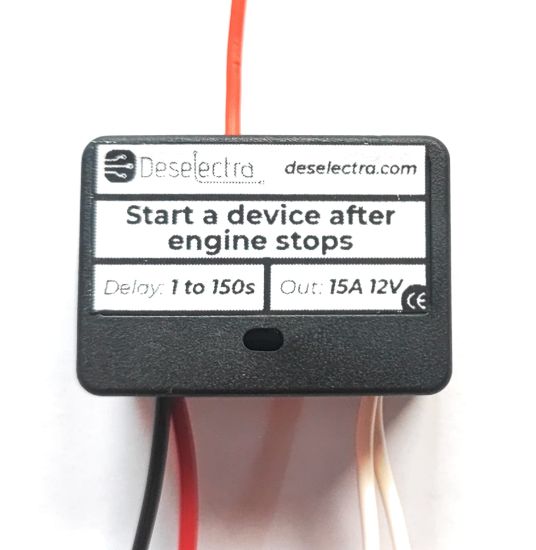

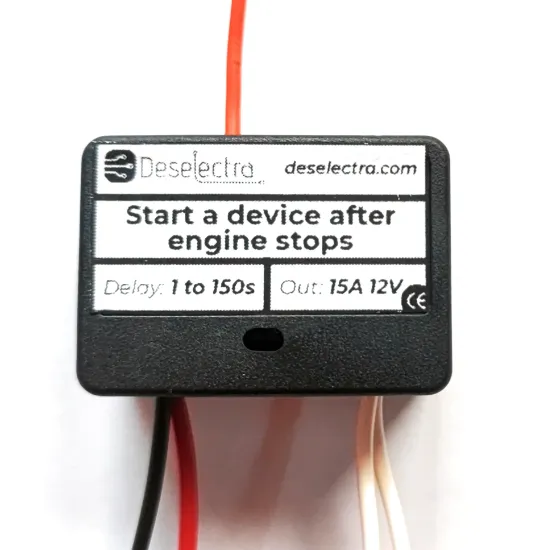

Specifications:
🕒 Adjustable Timing: Customize the delay time from 1 to 150 seconds, providing precise control over when your car appliances activate after the engine is turned off.
💡 LED Indication: The built-in LED indicator provides clear visual feedback, indicating when the timer is operational for easy monitoring.
⚡ Back-Voltage Protection: Rest assured knowing that your vehicle's electrical system is safeguarded against back-voltage, ensuring longevity and reliability.
🔌 Maximum Load Control: Capable of controlling appliances up to 12V/15A, allowing for versatile usage across various car applications.
🔧 Easy Installation: Installation is a breeze—simply connect the red and black wires to a permanent 12V power source (via a 1A fuse) and the orange wire to the contact switch to detect when the engine is turned on.
📏 Compact Design: With dimensions of 38mm x 18mm x 16mm, our controller features a compact and sleek design that seamlessly integrates into your vehicle's setup.
Method of Operation:
Connect the red and black wires to a permanent 12V power source, ensuring proper fuse protection. The orange wire is then connected to the contact switch to detect when the engine is turned on. The two white wires serve as the Normally Open contact of the relay, enabling you to activate car appliances up to 15A.
Package Contents:
- Car Timer Controller
- Instruction Manual and Wiring Diagram
