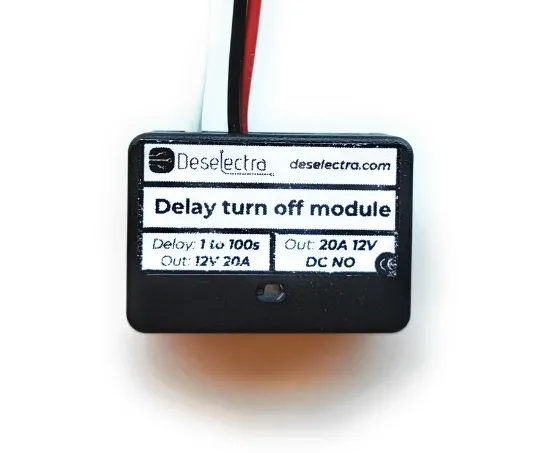

Small car timer switch time relay 0 to 100 sec kit 12V / 20A delay OFF universal

Dimensions:

• Length: 33 mm
• Width: 19 mm
• Height: 13 mm

Power Supply:

• 12V DC with protection against reverse supply voltage
• Wired with red (positive) and black (negative) wires

Output:

• Normally open contact (NO) wired with two white wires
• Wire length: 10 cm

Relay Details:

• 15A/24V DC, 20A/12V DC

Adjustable Time:

• Time is adjusted by trimmer
• Rotate clockwise to increase time

Principle of Work:

• When power is on, the relay is activated
• NO contact will close / NC will open and remain in that position until the end of the set time
• By restarting the power supply, the cycle repeats

Please note that there is no 12V output at the relay's output. Refer to the instruction diagram provided with the timer for proper installation. ⚠️📝

This compact Mini Time Relay comes with everything you need for easy installation and operation. Get yours today and experience enhanced control over your electrical systems!🔧

Package Contents:

1. Mini Time Relay
2. Instruction for use and wiring diagram
