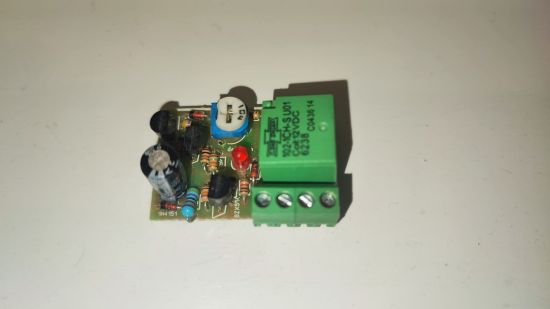

Timer Relay Switch Kit, 5-300 Seconds, 10A, 12V DC, Delay Off with Pulse Activation

Adjustable Time Relay – Precision Timer from 1 to 300 Seconds

Overview:
This versatile timer offers reliable timing control, adjustable with high accuracy from 5 to 300 seconds, ideal for applications where precise time delay is needed.

Key Specifications:

• Dimensions: 35 x 24 x 15 mm
• Power Supply: 12V DC
• Relay Specifications:
  • 20A/125V DC
  • 20A/24V DC or AC
  • 10A/250V AC
• Connections:
  • BA - Normally Open Contact
  • AH - Normally Closed Contact

Adjustable Time Setting:
Time delay is easily adjusted with the built-in trimmer, allowing for a precise setup of your timing needs.

Operating Principle:
When powered on, the relay activates and remains in this state until the pre-set time expires. To restart the timer, reset the power supply.

Package Includes:

1. Time Relay
2. User Instructions and Wiring Diagram
