Item Description
A very good designed circuit of a stable adjustable DC regulator using IC LM317T. LM317T is a very famous IC and supporting input voltage is from 3 volt to 40 volt DC and delivers a stable output between 1.25 volt to 36 volt DC. It is a very high performance IC contains a builtin current limiter, built in thermal overload protection & safe area protection.LM317T output current is 1.5A. The variable converter is best and ideal for lab use and also for many other purposes. The Output voltage is adjustable between 1.25v to 36v and the maximum output current is 1.5A. Must be placed good heat sink with IC
Dimensions:
- length - 50 mm
- width - 17 mm
- height - 28 mm
The DC Regulator have protection against reverse Input voltage.
Have protection against short circuit at the output.
Input 3 to 40 V DC
Output 1.2 to 36 V DC
The voltage is adjusted by trimmer.
Please note:
The device don't have heat stink - must be placed one to avoid overheat and damage!
It can be used without heat stink no more than 0.8A.

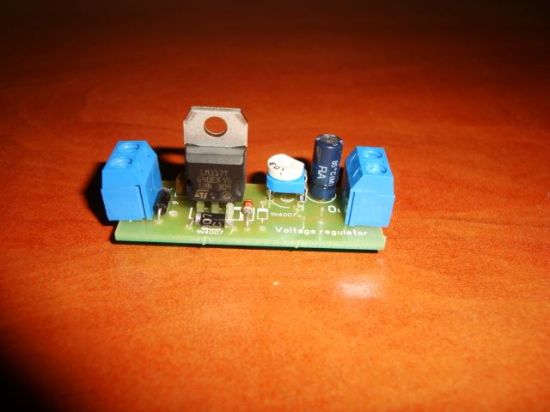

Device don't have plastic box, only plate, as see on the picture.
Package contents:
1. Voltage regulator
2. Instruction for use and wiring diagram.
