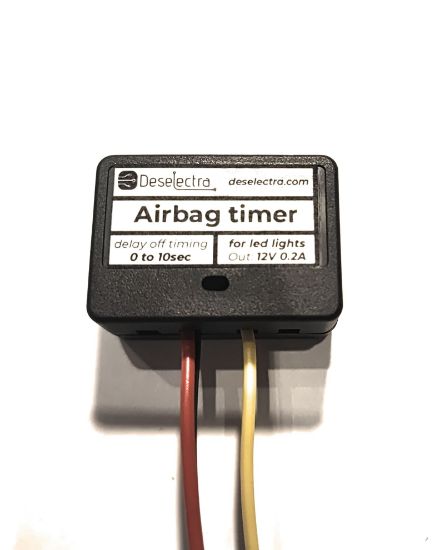

The kit is designed to repair always on airbag light for LED airbag lights up to 2.5W. It features a timer with accuracy from 1 to 10 seconds.
Dimensions:
- Length: 33 mm
- Width: 28 mm
- Height: 21 mm
LED indication for operation. Maximum allowable load control is 12V/0.2A suitable for LED Lights only up to 2.5W.
Power:
Red wire is positive (+), black wire is negative (-). It has protection against reverse supply voltage.
Installation Instructions:
Positive (red wire) must be connected to contact switch 12V+. Negative (black wire) should be connected to ground.
Output: Yellow wire connected to airbag light positive, negative of the airbag light – to ground.
Power supply: 12V DC
Time is adjusted by trimmer PR - 100K – Rotate clockwise to increase the delay time.
Principle of Work:
When power is on, the timer is activated (the output receives 12V) and maintains that position until the end of the set time. Restarting the power supply restarts the cycle.
Package Contents:
- LED Timer
- Instruction for use and wiring diagram
