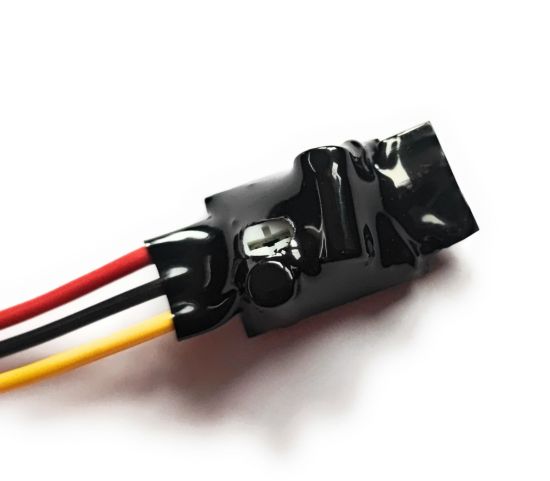

LED Car Repair SRS Airbag ABS Light Timer Switch, Delay Off, 1- 10sec, 12V, Covered

Key Features:

• Timer Accuracy: Adjust from 1 to 10 seconds
• Dimensions: Length: 33 mm, Width: 28 mm, Height: 21 mm
• LED Indication: Clearly see when the timer is operational
• Maximum Load Control: Handles 12V/0.2A, ideal for LED lights up to 2.5W
• Power Protection: Red wire (+) and black wire (-) with reverse supply voltage protection

Easy Installation:

1. Connect the red wire to the contact switch 12V+.
2. Ground the black wire.
3. Connect the yellow wire to the positive of your airbag light, and the negative to ground.

Adjustable Time:

• Use the trimmer PR - 100K to adjust the delay time. Simply rotate clockwise to increase the delay.

How It Works:

• Upon powering on, the timer activates and maintains the 12V output until the set time elapses.
• Restarting the power supply initiates a new cycle.

Package Contents:

1. LED Timer
2. Instruction Manual and Wiring Diagram
