Car airbag light timer switch time relay 1 to 10 sec kit Delay Off 12V 1A 12W with box

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal:

Click here to see the best price

Time Relay Specifications:

• Accuracy: 1 to 10 seconds
• LED Indication: Indicates operation status
• Maximum Allowable Load Control: 12V/1A (extendable to 1.5A with a heat sink)

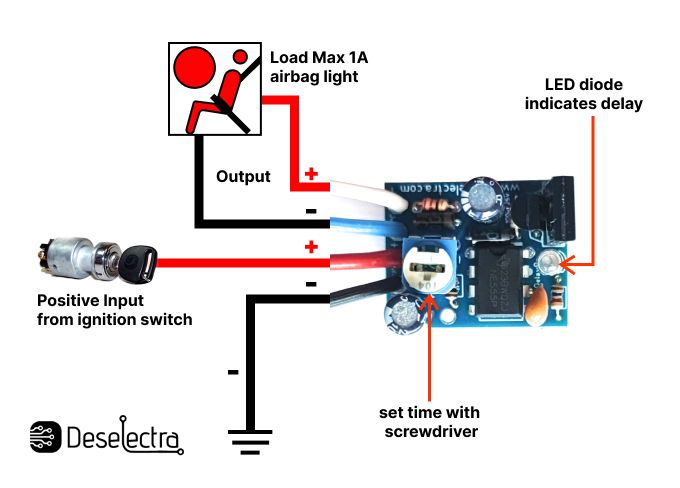

Power Connections:

• Red Wire (+): Connect to 12V+ contact switch
• Black Wire (-): Connect to ground
• Includes protection against reverse supply voltage

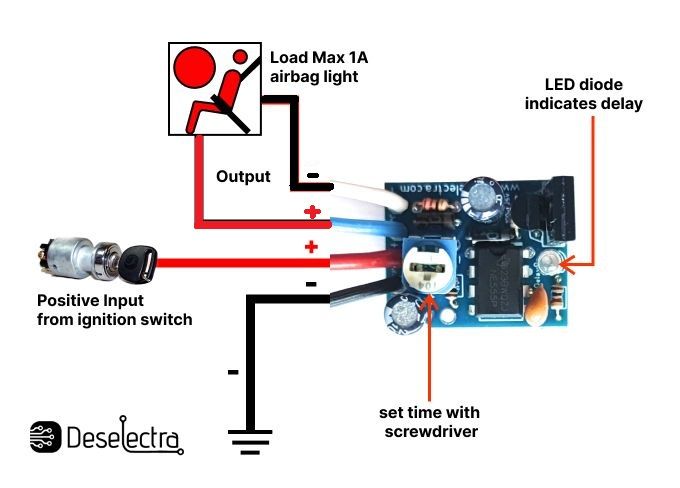

Output Connections:

• White Wire (+)
• Blue Wire (-)
• Connect to both terminals of the airbag light (output cannot be connected to common ground)

Power Supply:

• 12V DC

Time Adjustment:

• Adjust using Trimmer PR - 100K
• Rotate clockwise to increase the delay time

Operating Principle:

• When power is applied, the timer is activated (output receives 12V) and maintains this state until the set time elapses
• Restarting the power supply will repeat the cycle

Ensure all connections are secure and properly insulated. Follow the wiring instructions carefully to avoid damage or malfunction.
