Led car repair srs airbag abs light timer switch 1 to 10 sec kit delay off 12V

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal:

Click here to see the best price

Dimensions:

• Length: 21 mm
• Width: 17 mm
• Height: 16 mm

LED Indication for Operation

Maximum Allowable Load for Control:

• 12V/0.2A, suitable for LED lights up to 2.5W

Power Connections:

• Red: Positive (+)
• Black: Negative (-)

Equipped with reverse supply voltage protection.

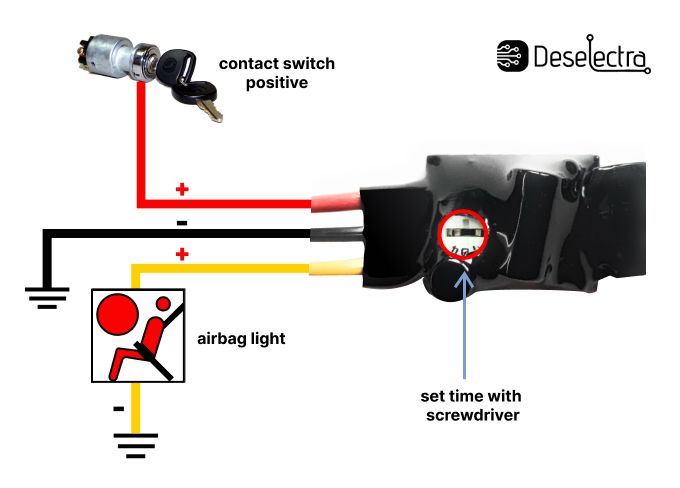

Connect the positive (red wire) to the 12V+ contact switch and the negative (black wire) to the ground.

Output:

• Yellow Wire: Connect to the positive terminal of the airbag light
• Negative terminal of the airbag light: Connect to ground

Power Supply: 12V DC

Time Adjustment:

• Adjusted using Trimmer PR - 100K
• Rotate clockwise to increase the delay time.

Working Principle:

When power is applied, the timer is activated (the output receives 12V) and maintains that state until the set time elapses. Restarting the power supply will repeat the cycle.
