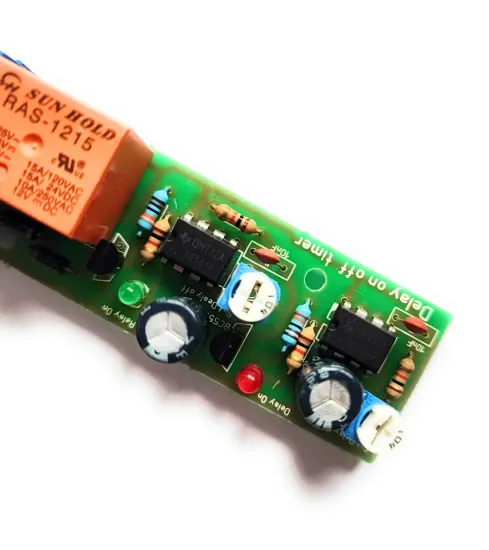

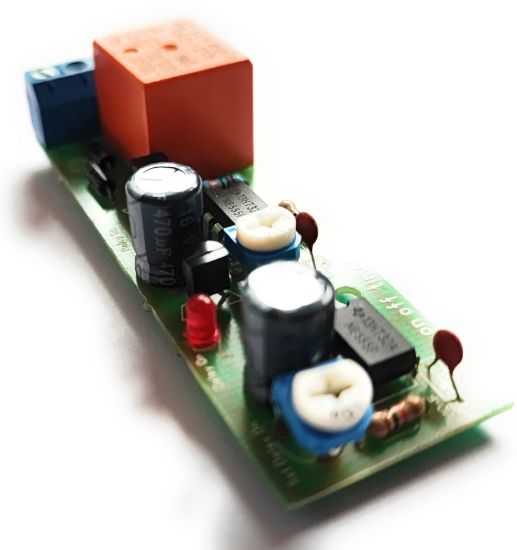

Delay ON (0 to 50s) and OFF (0 to 45s) timer switch time relay, 10A 12V

Perfect for various applications requiring precise timing intervals, this relay offers separate adjustment for both "Time off" and "Time on," allowing you to customize operation according to your specific requirements.
Manufacturer: Deselectra
Old price: €14.00
€12.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Introducing the Adjustable Time Relay

Upgrade your control system with precision timing capabilities using this versatile adjustable timer. Perfect for various applications requiring precise timing intervals, this timer offers separate adjustment for both "Time off" and "Time on," allowing you to customize operation according to your specific requirements.

Key Features:

⏳ Adjustable Timing: Fine-tune your timing intervals with separate trimmers for "Time off" (0-45 sec) and "Time on" (0-50 sec), providing precise control over delay durations.

πŸ”§ Simple Adjustment: Easily adjust the timing settings using the intuitive trimmers, allowing for quick and hassle-free customization to suit your application needs.

πŸ”΄πŸŸ’ LED Indicators: Equipped with two LED indicators – red for delay on and green for relay activation – providing clear visual feedback on the operational status of the relay.

πŸ› οΈ Reliable Operation: Built with a high-quality relay capable of handling up to 15A/125V DC, ensuring reliable performance and long-term durability for your applications.

πŸ“ Compact Design: With dimensions of 750mm x 25mm x 18mm, this relay module is compact and space-efficient, making it easy to integrate into your existing setup without taking up excess space.

Principle of Operation:

  1. Upon power supply activation, the red LED illuminates, indicating the start of the delay off period as per the set duration.

  2. After the delay off period elapses, the green LED lights up, signifying the activation of the relay. The relay's normally open contact closes, while the normally closed contact opens, maintaining this state for the set duration of the delay on period.

  3. Once the delay on period concludes, the relay returns to its initial state, ready for the next cycle upon power supply restart.

Versatile Applications:

This timer is ideal for a wide range of applications, including delay start mechanisms for various devices, precise timing control in industrial processes, and automation systems requiring customizable timing intervals.

Enhance your control system with precision timing capabilities using the Π°djustable timer, offering reliability, flexibility, and ease of use in one compact package. πŸ•’πŸ”Œ

Package include:

1. Timer

2. User Instructions and Wiring diagram
