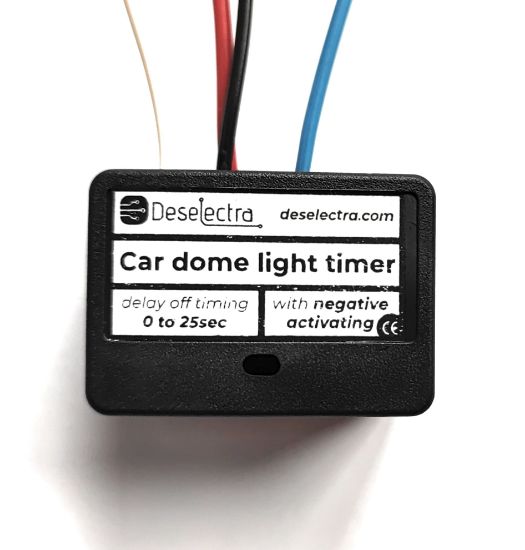

🚗 Item Description: Car Interior Light Delay Module 🚗
Upgrade your vehicle's interior lighting system with our Car Interior Light Delay Module. This module replicates the convenient feature found in newer cars, where the interior light automatically turns off after a set delay when the door is closed. Say goodbye to fumbling for light switches in the dark with this easy-to-install and efficient solution.
Key Features:
🕒 Automatic Delay Function: When the car door is opened, the interior light automatically turns on. Upon closing the door, the light remains illuminated for a customizable delay period (1-25 seconds) before switching off.
💡 Compatible with Various Lights: Suitable for use with both LED and incandescent lights, accommodating loads up to 1A (12 watts). Enjoy seamless integration with your existing lighting setup.
🚪 Negative Door Switching Signal: Designed specifically for cars with negative door switching signals. Refer to the provided wiring diagram for hassle-free installation.
💡 LED Indication: Built-in LED indicator provides visual confirmation of the module's operation, ensuring ease of use and troubleshooting.
🔒 Built-in Protection: The module features protection against reverse supply voltage, enhancing safety and reliability during operation.
⏱️ Adjustable Time Settings: Customize the delay time according to your preferences using the included trimmer (PR - 100K), allowing for precise control over the lighting duration.
📏 Compact Design: With dimensions of 40mm x 28mm x 21mm (including the box), the module offers a space-saving solution that seamlessly integrates into your vehicle's interior.
💪 High Load Capacity: Capable of controlling loads up to 12V/1A, with the option to extend the capacity with a heat sink to 1.5A for added versatility.
Principle of Operation:
When the vehicle door is opened, the module detects the door switch signal and activates the interior light.
Upon closing the door, the interior light remains illuminated for the duration set by the user-adjustable trimmer (1-25 seconds).
After the set delay time elapses, the module automatically switches off the interior light, conserving energy and ensuring the vehicle's battery life.
📦 Package Contents:
- Car Interior Light Delay Module (Time Relay)
- Instruction Manual with Wiring Diagram
Upgrade your car's interior lighting system with our Car Interior Light Delay Module, providing convenience, efficiency, and enhanced functionality for your daily commute. Say goodbye to dark interiors and hello to illuminated pathways with this innovative solution. 🌟
