1. Technical Specifications

  • Input Voltage: 1 to 24V DC / 1 to 120V AC

  • Output: 12V DC at 2A (max 24W power capacity)

  • Dimensions: 24mm x 20mm x 15mm

2. Features

  • Polarity reversal for motor control

  • Wide compatibility with various power inputs

  • Built-in short circuit protection

  • Compact and space-efficient design

3. Operation

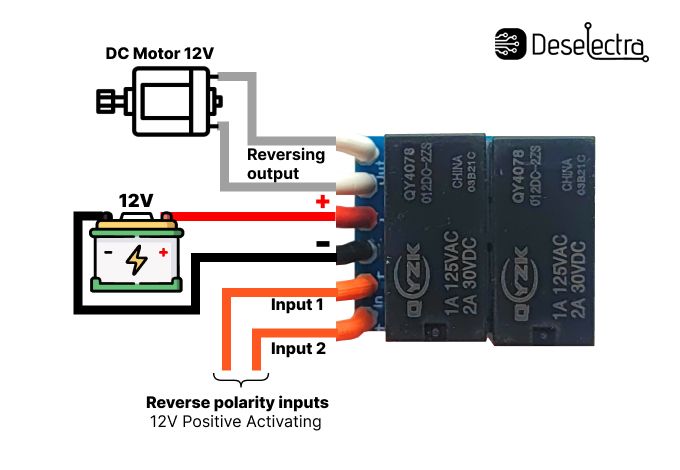

  1. Connect the power supply to the input terminals labeled "In" using the red and black wires, ensuring correct polarity.

  2. Connect the DC motor to the output terminals labeled "OUT" using the white wires.

  3. Apply a 12V+ DC signal to one of the orange wires to start the motor in one direction.

  4. To reverse the direction, apply a 12V+ DC signal to the other orange wire.

4. Applications

  • Motorized movement control

  • Automation systems

  • Electrical motor-driven devices

5. Package Contents

  • Motor polarity reversal module

  • User instructions and wiring diagram
