Cyclic timer switch relay 12V adjustable ON/OFF repeater 700/300 sec

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal:

Click here to see the best price

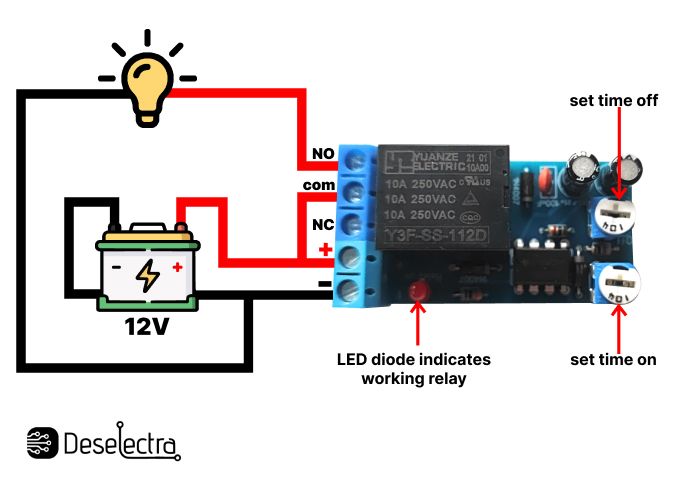

Image of Cyclic timer switch relay kit 12V adjustable ON/OFF repeater 11/7sec

This Cyclic Timer Switch Time Relay Kit allows for adjustable ON and OFF times using the provided trimmers:

  • ON Time: Adjustable from 0 to 700 seconds. Rotate the trimmer counterclockwise to increase the time.
  • OFF Time: Adjustable from 0 to 300 seconds. Rotate the trimmer counterclockwise to increase the time.

Power Supply:

  • Voltage: 12V DC

Relay Specifications:

  • Relay Output:
    • 15A at 125V AC
    • 15A at 24V DC
    • 3A at 250V AC

Features:

  • LED Indication: Indicates the operation status of the timer.
  • Relay Contacts:
    • Normally Open (NO) Contact
    • Normally Closed (NC) Contact

Important Notes:

  • The output does not provide 12V power; it is only a relay contact output.
  • The time intervals are adjusted by rotating the trimmers counterclockwise to increase the duration.

Operating Principle:

When the power is applied, the relay closes and remains in this state for the set ON time. After the ON time elapses, the relay deactivates for the set OFF time. Once the OFF time ends, the cycle repeats from the beginning.
