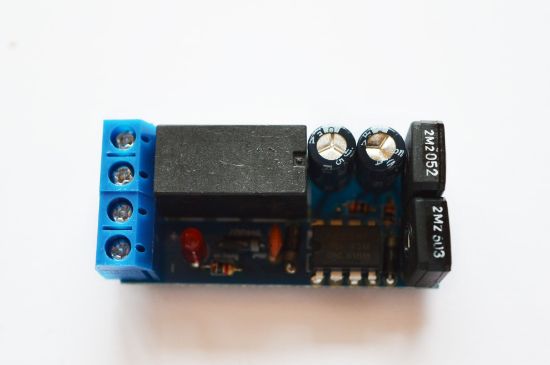

DC Motor Polarity Reversing Timer – 12V, Pre-Set Cycles: 11/7s, 165/75s, 700/300s

Key Features

⏱️ Adjustable Timing

Provides flexible control over ON and OFF cycles:

• ON time: adjustable from 0 up to 11 / 165 / 700 seconds
• OFF time: adjustable from 0 up to 7 / 75 / 300 seconds
  Predefined ranges allow precise configuration according to application requirements.

🔌 Stable Power Supply

Operates on a 12V DC input, ensuring reliable and consistent performance across various applications.

🔧 High-Capacity Relay Output

Equipped with a durable relay rated at:

• 15A / 125V AC
• 15A / 24V DC
• 3A / 250V AC
  Ensures dependable switching for both DC and AC loads.

🔘 Dual Relay Contacts

Includes:

• Normally Open (NO) contact
• Normally Closed (NC) contact
  Allowing flexible integration into different circuit configurations.

🕒 Dual Trimmer Adjustment

Two independent trimmers enable precise fine-tuning of both ON and OFF timing intervals.

📏 Compact Design

Dimensions: 50 × 29 × 18 mm
Designed for easy installation in space-limited environments.

🔄 Cyclic Operation

Upon power-up, the relay remains active during the configured ON time.
Afterward, it switches OFF for the defined OFF interval.
This cycle repeats continuously as long as power is applied.

📦 Package Contents:

1. Cyclic Time Relay
2. Comprehensive Instruction Manual and Wiring Diagram
