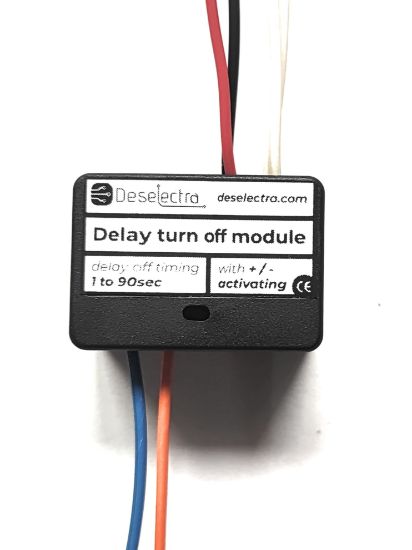

🕒 Introducing the Ultimate Time Relay! 🕒
Unlock precision timing control with our remarkable Time Relay, designed to perfection for durations ranging from 1 to 90 seconds! ⏱️
📐 Compact and Versatile Design: Crafted with meticulous precision, our Time Relay boasts dimensions of 35mm/18mm/12mm (plate) and 40mm/17mm/21mm (with box), ensuring seamless integration into any setup!
🔌 Effortless Wiring: Wired with 10cm wires for easy installation, featuring color-coded connections:
- Red: Positive 12V+
- Black: Negative 12V-
- Two white: Normally open contact of the relay
- Orange: Activating 12V+ input
- Blue: Activating 12V- input
⚡ Reliable Performance: Equipped with a robust relay output of 20А/12V DC NO contact (wired) and 10A/12V DC NC contact (not wired), guaranteeing uninterrupted operation!
💡 Principle of Operation: When power is on, the relay eagerly awaits a 12V+ pulse (or negative 12V-) at the activating input. Upon reception, the timer springs into action, maintaining its position until the specified time elapses. Simple yet effective!
🚗 Perfect for Automotive Applications: Seamlessly integrate our Time Relay into your car's front light system!
- Connect the orange wire to the positive contact switch for effortless activation.
- Ensure a permanent feed of +(red) and -(black) from the car battery (with a 1A fuse) for uninterrupted power.
- Connect one white wire to the front light and the second white wire to 12V+.
- Complete the circuit by connecting the other wire from the front light to 12V-.
🌟 Exceptional Performance: When the contact switch is engaged, the timer triggers, closing the relay and illuminating the lights. Once disengaged, the timer initiates a countdown, keeping the lights on for the specified duration (up to 90s) before powering down.
⚠️ Important Note: To safeguard against power surges, ensure that the total power consumption of the lights does not exceed 20A. For higher loads, consider integrating a separate powerful relay to prevent damage to the timer.
📦 Package Contents:
- Time Relay
- Instruction Manual and Wiring Diagram
Upgrade your automation endeavors with our cutting-edge Timer – the perfect companion for your precision timing needs! Don't miss out, grab it today! 🚀
