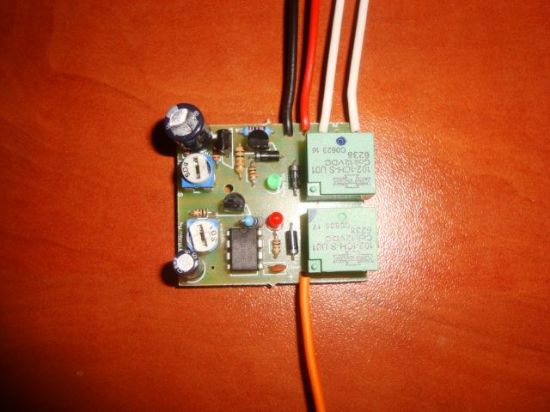

2 in 1 delay ON and delay OFF car front lights switch timer relay kit 20A 12V

DELAY OFF TIME - from 1 to 160 sec ; DELAY ON TIME - from 1 to 50 sec
Old price: €16.00
€14.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Item Description:

Timer Relay with Adjustable Timing

  • Delay Off Time: Adjustable from 1 to 160 seconds.
  • Delay On Time: Adjustable from 1 to 50 seconds.

Dimensions:

  • Length: 42 mm
  • Width: 23 mm
  • Height: 35 mm

Relay Output:

  • COM Contact: White wire
  • NO (Normally Open) Contact: 20A/12V DC, white wire
  • NC (Normally Closed) Contact: 10A/12V DC (not wired).

Wiring Instructions:

  • The two white wires must be connected to the car’s front light switch in parallel.
  • Power Input:
    • Red wire (+12V)
    • Black wire (Ground -12V)
    • Includes protection against reverse voltage.
    • Must be connected through a permanent 1A fuse.
  • Orange Wire: Activating input (12V+) from the contact switch.

Power Supply: 12V DC

Adjustment: Two independent trimmers are used to set delay on and delay off times.

Principle of Operation:

  1. Engine On:
    When the contact switch is turned on, the timer receives a 12V+ signal, and the delay-on time starts (indicated by a red LED). Once the delay time ends, the relay activates, closing the "NO" contact and turning on the front lights. This function prevents unnecessary battery drain.

  2. Engine Off:
    When the contact switch is turned off, the 12V+ signal stops, and the delay-off time begins. After the set time expires, the front lights automatically turn off, allowing you to leave your vehicle safely in the dark.

  3. Cycle Repeats:
    If the contact switch is turned on again, the cycle restarts.

Package Contents:

  1. Timer
  2. User Manual and Wiring Diagram
