Timer switch relay 0-150 sec kit delay ON car daylights direct 12V out 20A

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal:

Click here to see the best price

Item Description

Specifications:

  • Accuracy: 0 to 150 seconds
  • Dimensions:
    • Length: 40 mm
    • Width: 27 mm
    • Height: 21 mm
  • Power Supply: 10 to 14 V DC
    • Red Wire: 12V+
    • Black Wire: 12V-
  • Output: Direct 12V 20A
    • White Wire: 12V+
    • Blue Wire: 12V-
    • Capacity: 20A/12V DC
  • Time Adjustment: By trimmer

Working Principle: When power is applied, the delay time starts, and the LED diode lights up. When the set time ends, the output (blue and white wires) receives 12V until the power is cut off. Restarting the power supply restarts the cycle. The device is housed in a plastic box, as shown in the picture.

Example Application: This timer can be used to delay the activation of car lights. When the ignition starts, the timer waits (1-150 seconds) before turning on the front lights to save the car battery. When the ignition is off, the lights cut off immediately. The timer receives 12V from the ignition key contact, and the output should be wired to the front lights.

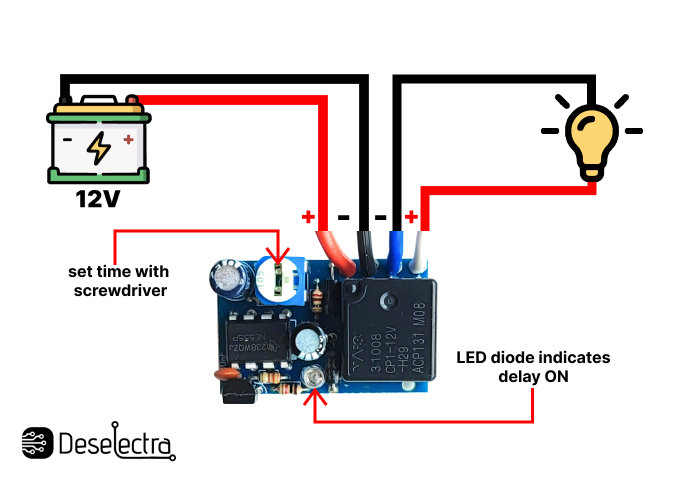

Usage Instructions:

  1. Connect Power Supply:
    • Red wire to 12V+
    • Black wire to 12V-
  2. Connect Output:
    • White wire to 12V+ of the load
    • Blue wire to 12V- of the load
  3. Adjust Time:
    • Use a trimmer to set the delay time from 0 to 150 seconds.
  4. Operation:
    • Power on to start the delay.
    • LED lights up during the delay.
    • After the delay, the output receives 12V.
    • Cycle repeats with each power restart.

This time relay is perfect for applications requiring delayed activation of devices, providing precise control and reliable performance.
