Solar panel boiler differential thermostat hot water pump controller 12-220V 10A

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal: Click here to see the best price

12V

110-220V

Technical Specifications:

1. Voltage: 12V DC
2. Temperature Range: 1°C to 90°C
3. Differential Range: 0.3°C to 37°C (adjustable via trimmer)
4. Relay Output:
   • 10A/125V DC
   • 10A/250V AC
   • 10A/12V DC
5. Sensors: Not waterproof
6. Dimensions: 45x25 mm (control board)
7. Probe Wire Length: 25 cm (extendable up to 15 m)
8. LED Indication: Lights up when load is active

Operation:

• The relay is triggered when Probe 2 detects a higher temperature than Probe 1. The normally open (NO) contact closes, activating the relay and turning on the LED.
• The relay remains active until the temperature difference between the two probes decreases to the value set by the trimmer.

Setting the Differential Temperature:

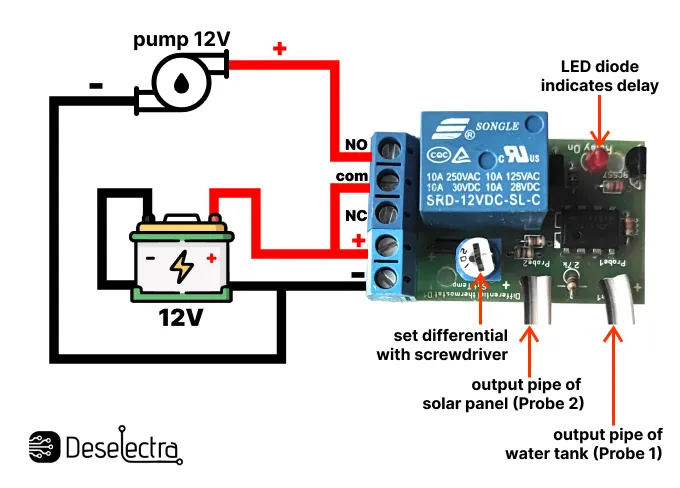

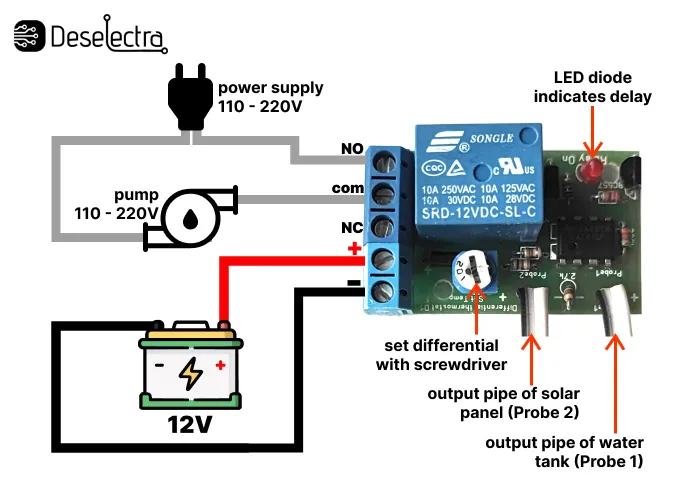

• Start by positioning the trimmer at the middle setting.
• Slowly rotate left or right until the LED turns off. This sets the thermostat at the lowest differential temperature.
• Counterclockwise rotation increases the differential temperature. Small adjustments can cause significant changes in the temperature setting due to the trimmer's sensitivity.

Example Setup:

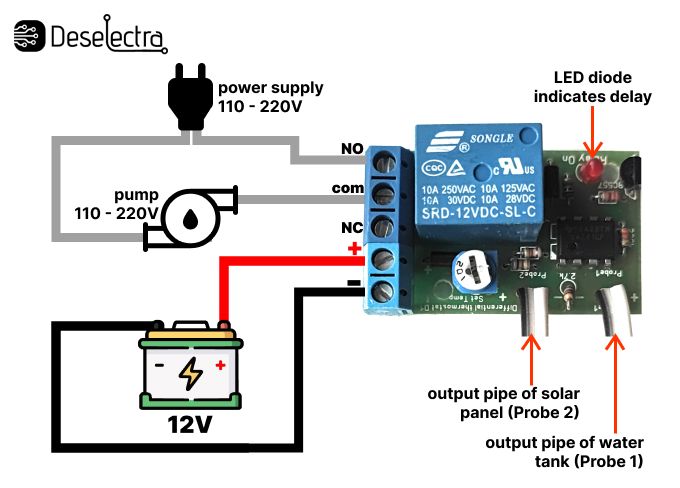

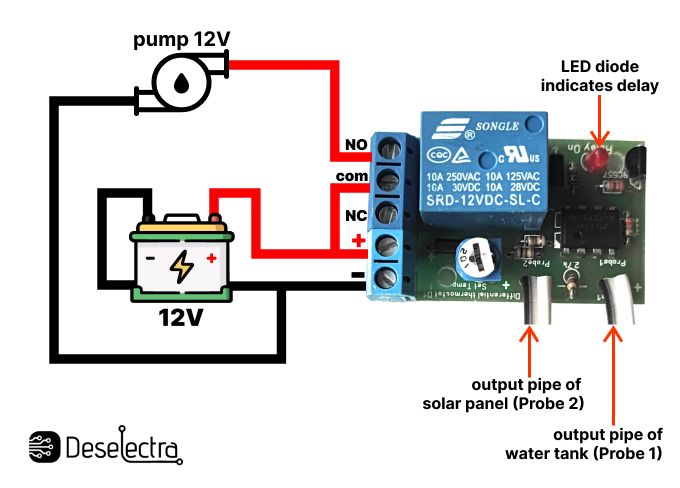

• Probe 1 can be installed on the outlet pipe of the hot water boiler.
• Probe 2 can be installed on the outlet pipe of the solar panel.
• The NO contact can be wired to control a 12V or 220V water pump (up to 10A).

This allows the pump to activate when the solar panel is hotter than the boiler. The pump deactivates once the differential temperature matches the value set by the trimmer.

Deselectra electronics
