Small car timer switch time relay 0 to 90 sec kit 12V / 20A delay OFF universal
Limited Time Offer!
Hurry, our best price won’t last long! Click to check out the exclusive deal: Click here to see the best price
Product Overview:
Dimensions:
- Length: 33 mm
- Width: 19 mm
- Height: 13 mm
Power Supply:
- Voltage: 12V DC
- Protection: Reverse supply voltage protection
- Wiring:
- Red wire: Positive (12V+)
- Black wire: Negative (12V-)
Output:
- Normally Open (NO) Contact:
Wired with two white wires (10 cm in length) - Relay Capacity:
- 15A at 24V DC
- 20A at 12V DC
Adjustable Time:
- Trimmer Adjustment: Rotate clockwise to increase the time delay.
Principle of Operation:
- Power On:
When power is supplied, the relay is activated. The NO contact will close (the NC contact will open) and remain in that position until the set time elapses. - Cycle Repeat:
The cycle restarts each time the power supply is turned off and on again.
Important Notes:
- Minimal Time Setting:
If you set the trimmer to the minimal time, the relay will immediately click when powered on. This is not recommended for most applications. - No Voltage at Output:

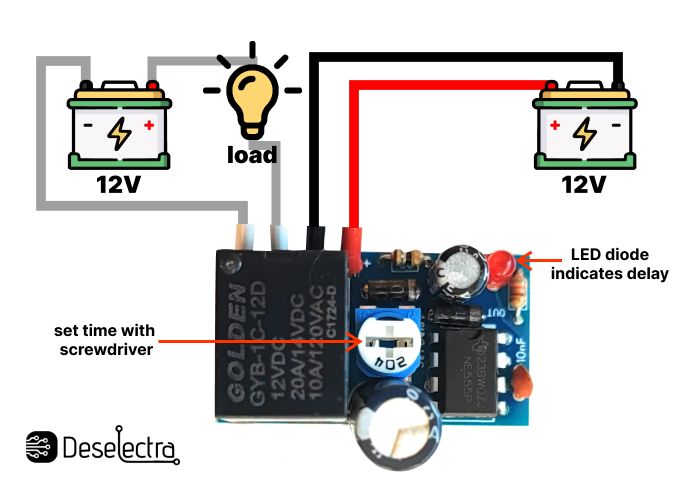

The relay does not supply voltage at its output. You must use an external power supply for the load (refer to the wiring diagram for proper setup). - High-Power Loads:
For front lights or loads exceeding 20A, a separate high-power relay must be used after the timer to prevent damage to the circuit.
Additional Information:
- Power Supply for Load:
The relay only acts as a switch to open and close the circuit. You must connect a separate power supply, such as the car battery, for powering the load.
Safety Precautions:
- Ensure proper wiring according to the provided diagram.
- Avoid using the relay with loads exceeding its rated capacity without additional relays.
This Mini Timer Relay provides precise control for your automotive and electrical projects, ensuring safe and reliable operation.
