Positive car dome interior light timer 0-480sec prevent battery drain delay off

Overview

The Car Dome Interior Light Timer is designed to prevent battery drain in older vehicles by automatically turning off the interior (dome) light after a set period when the door is left open. This module replicates a feature commonly found in newer cars, ensuring your battery remains charged.

Features

• Automatic Shut-Off: The interior light will turn on when the door is opened. If the door remains open for more than 8 minutes, the light will automatically turn off to conserve battery power.
• Manual Control: If the door is closed before the 8-minute timer elapses, the interior light will turn off immediately.
• Compatibility: Can be used with LED and incandescent lights up to 10A.
• Positive Door Switching Signal: This module is designed specifically for vehicles with a positive door switch signal. Refer to the wiring diagram for installation instructions.

Specifications

• Dimensions (with box):
  • Length: 40 mm
  • Width: 28 mm
  • Height: 21 mm
• Power Supply: 12V DC
• Time Adjustment: The delay time can be adjusted using a trimmer. Rotate clockwise to increase the time delay.
• LED Indicator: Indicates operational status.

Installation

1. Ensure your vehicle has a positive door switching signal.

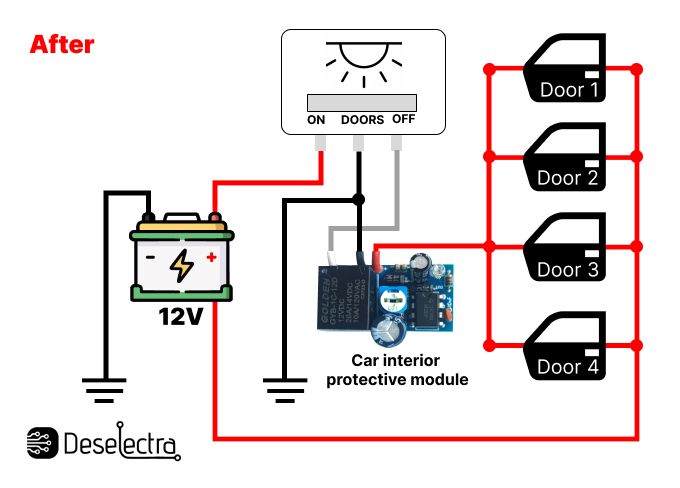

2. Follow the wiring diagram included with the kit for proper connections.
3. Install the module securely within the vehicle.

Notes

• For optimal performance, ensure that the module is installed correctly as per the wiring diagram.
• Adjust the timer setting according to your preference for the light delay.

Enjoy the convenience and peace of mind of knowing your interior lights will turn off automatically, helping to prevent battery drain!
