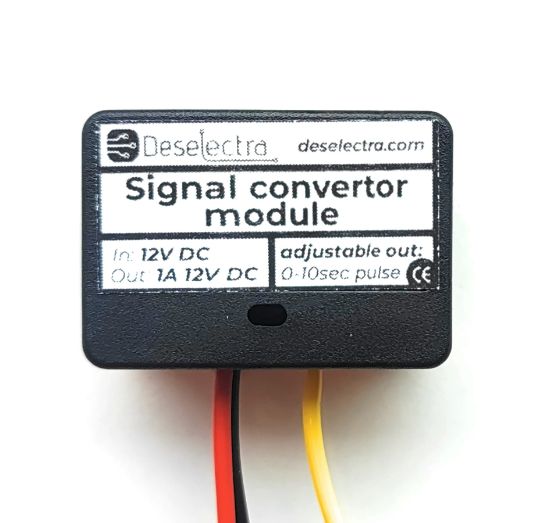

Car Module Convert Constant ON signal to adjustable 0-10 sec single pulse 12V

This module is designed to transform a constant 12V voltage into a single 12V pulse with adjustable duration.
Manufacturer: Deselectra
€9.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Item Description

This module is designed to transform a constant 12V voltage into a single 12V pulse with adjustable duration.

Input Signal: 12V DC - red wire

Output: 12V pulse with adjustable duration (0 to 10 sec) - Yellow wire

Ground: Black wire

Plate dimensions: 21mm x 17mm x 16mm

Time adjustment is facilitated by a trimmer knob - rotating clockwise increases the duration.

How does the module operate?

The red wire connects to the positive input signal, the black wire to ground, and the yellow wire outputs a single pulse signal. Upon powering on, the module sends a single pulse, regardless of the continued activity of the input signal. If the input signal is restarted, the module will emit a new single pulse.

Package contents:

Signal converter

Instruction manual and wiring diagram
