User Guide: Mini LED Dimming Fade On/Off Module

Overview

This module provides a smooth fade-in effect when turned on and a fade-out effect when turned off, suitable for 12V LED lights up to 12W. Ideal for applications in both home and automotive lighting.

Specifications:

• Power Supply: 12V DC with protection against reverse polarity
• Output: Direct 12V, 1A, up to 12W LED
• Power Consumption: None in standby mode (switch open)
• Fade Timing:
  • Fade-On Time: 7 seconds to full brightness
  • Fade-Off Time: 14 seconds to off
• Dimensions: 18mm x 16mm x 9mm
• Wire Length: 10 cm

Wiring Instructions:

1. Connect Power:

   • Red Wire: Connect to 12V positive (+) and to the positive terminal of the LED (common for both input and output).
   • Black Wire: Connect to the 12V negative (-).

2. Connect LED Light:

   • White Wire: Connect to the negative terminal of the LED (12V -).

3. Connect Toggle Switch:

   • Yellow Wires: Connect both yellow wires to the toggle switch.

Operating Principle:

1. To Turn On:
   • When the toggle switch is turned on, the LED will fade in over 7 seconds to full brightness and remain on.
2. To Turn Off:
   • When the switch is turned off, the LED will fade out over 14 seconds to off, then enter standby mode.
3. Standby Mode:
   • In standby mode (when the switch is open), the module consumes no power and is ready to be turned on again.

Applications:

This module can be used with any 12V LED lights up to 12W in home or car settings for a soft, professional lighting effect.

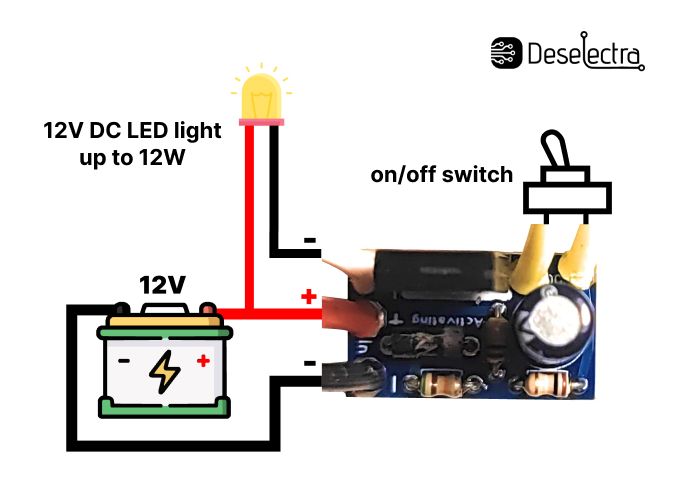

Wiring Diagram:

Follow the wiring diagram provided with the module for visual guidance on setup.

This module is designed for simplicity and efficiency, ensuring no power drain when in standby, making it a versatile choice for various lighting applications.
