User Guide: Car Dome Interior Light Timer (1-55 Seconds Delay) for Negative Door Switches

This module is designed to replicate a feature found in newer cars, where the interior dome light remains on for a set time after the door is closed, then automatically switches off. It’s perfect for older vehicles without this functionality.

Features:

• Automatic Light Control:
  • When the door is opened, the interior light switches on.
  • After the door is closed, the light will remain on for a set delay (adjustable from 1 to 55 seconds) and then switch off.
• Lighting Compatibility:
  • Works with LED and incandescent lights up to 15A (180 watts).
• Negative Door Switch Signal:
  • This module is only compatible with cars that use a negative door switching signal.
• LED Indicator:
  • Displays the operational status of the module.
• Adjustable Time Delay:
  • The delay time can be adjusted using a 100K trimmer. Rotate clockwise to increase the delay.

Specifications:

• Maximum Load Capacity:
  • 12V/15A (180 watts)
• Power Supply:
  • 12V DC with reverse voltage protection.
• Time Adjustment:
  • Adjustable from 1 to 55 seconds using a trimmer.

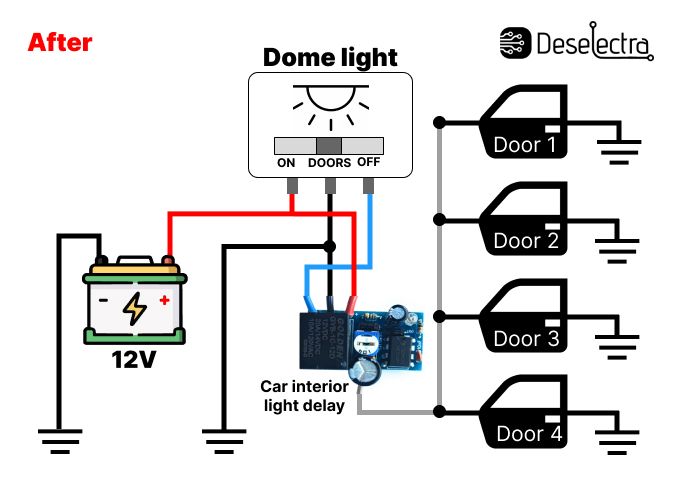

Wiring Instructions:

1. Identify the Dome Light Wiring:

   • Inside the dome light assembly, locate three connectors:
     • One connects to the ground.
     • One connects directly to the battery.
     • The third connects to the door switches, which are connected in parallel directly to the ground.

2. Cut the Door Switch Wire:

   • Cut the wire leading to the door switches.

3. Wiring the Module:

   • Red Wire: Connect to the positive terminal (+) of the battery.
   • Black Wire: Connect to the negative terminal (-).
   • Blue Wire: Connect to the door switch terminal of the dome light.
   • White Wire: Connect to the door switches (the cut wire).

4. Safety Precaution:

   • Connect the red wire through a 3A fuse for added safety and protection.

Operation:

• When power is connected, the timer will complete an initial cycle without activating the light.
• After this, the module is ready for regular use.
• The dome light will switch on when the door is opened and remain on for the set delay time after the door is closed.
• The delay time can be adjusted using the trimmer (clockwise to increase the delay).

Important Notes:

• This module is designed only for cars with a negative door switching signal. Ensure compatibility before installation.
• For safety, always use the 3A fuse on the red power wire.
• The first cycle after installation will complete without activating the dome light.

By installing this Car Dome Interior Light Timer, you can enjoy modern convenience and prevent battery drain in older vehicles.
