Heat Exchanger Freon-Water | High-Pressure Design for R32 and R410a Refrigerants
This robust heat exchanger is specifically designed for use with high-pressure refrigerants R32 and R410a, capable of operating at a maximum working pressure of 4.0 MPa. It provides exceptional performance in both evaporator and condenser modes, making it an ideal choice for HVAC systems, heat pumps, and industrial applications.

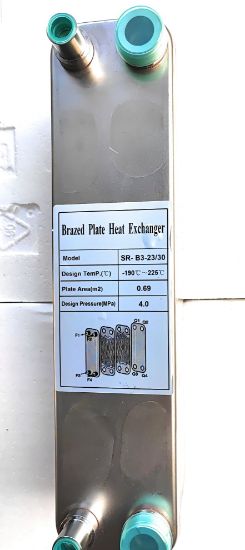

Model: SR-B3-23A-30-4
- Evaporator Capacity: 5.0 kW
- Condenser Capacity: 7.0 kW
- Surface Area: 0.7 m²
- Fin Density: 30 fins
- Refrigerant Inlet/Outlet: 12.8 mm
- Water Inlet/Outlet: 3/4"
Model: SR-B3-23A-40-4
- Evaporator Capacity: 7.5 kW
- Condenser Capacity: 10.5 kW
- Surface Area: 0.92 m²
- Fin Density: 40 fins
- Refrigerant Inlet/Outlet: 16.2 mm
- Water Inlet/Outlet: 3/4"
Model: SR-B3-23A-60-4
- Evaporator Capacity: 10.0 kW
- Condenser Capacity: 14.0 kW
- Surface Area: 1.38 m²
- Fin Density: 60 fins
- Refrigerant Inlet/Outlet: 19.2 mm
- Water Inlet/Outlet: 3/4"
Model: SR-B3-52A-40-4
- Evaporator Capacity: 15.0 kW
- Condenser Capacity: 17.75 kW
- Surface Area: 2.08 m²
- Fin Density: 40 fins
- Refrigerant Inlet/Outlet: 22.3 mm
- Water Inlet/Outlet: 1"
Model: SR-B3-52A-60-4
- Evaporator Capacity: 25.0 kW
- Condenser Capacity: 29.5 kW
- Surface Area: 3.12 m²
- Fin Density: 60 fins
- Refrigerant Inlet/Outlet: 22.3 mm
- Water Inlet/Outlet: 1" - 1/2"
Evaporator Mode:
- Refrigerant: R410a
- Evaporation Temperature (Tevap): 2°C
- Condensing Temperature (Tcond): 40°C
- Superheat: 5°C
- Water Inlet Temperature: 12°C
- Water Outlet Temperature: 7°C
This mode efficiently transfers heat from water to refrigerant, ideal for applications requiring precise and reliable cooling performance.
Condenser Mode:
- Refrigerant: R410a
- Discharge Temperature (Tdischarge): 90°C
- Condensing Temperature (Tcond): 50°C
- Water Inlet Temperature: 40°C
- Water Outlet Temperature: 45°C
In condenser mode, the exchanger ensures effective heat rejection, transferring heat from refrigerant to water for optimal thermal management.
Key Features:
- High Working Pressure: Engineered for refrigerants with pressures up to 4.0 MPa.
- Efficient Heat Transfer: Optimized surface area and fin design for superior thermal performance.
- Durable Design: Built to withstand high pressures and rigorous operational conditions.
- Standard Connections: Easy-to-install 12.8 mm refrigerant ports and 3/4" water connections.
- Compact Size: Space-saving design suitable for a wide range of systems.
Applications:
- Heat pumps
- Air conditioning systems
- Industrial cooling and heating systems
- Refrigeration equipment
Choose the SR-B3-23A-30-4 heat exchanger for reliable and efficient operation with R32 and R410a refrigerants, ensuring optimal performance for your thermal management needs.
