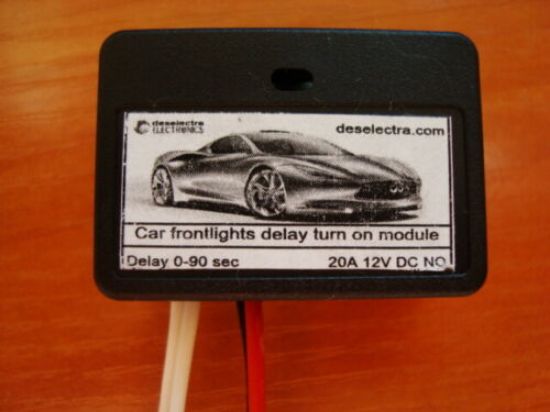

Item Description: Ultra Compact Time Relay Module
🔧 Adjustable Time Delay: From 0 to 90 or 220 seconds for precise timing control.
📏 Compact Design:
- Dimensions: 40mm (Length) x 27mm (Width) x 21mm (Height)
- Fits easily in tight spaces, perfect for car installations!
🔋 Power Supply: 12V DC (compatible with 8-14V) with built-in reverse voltage protection.
🔌 Wiring:
- 12V+: Red wire
- 12V-: Black wire
- NO Contact: Two white wires (20A/12V)
- NC Contact: 10A/12V (not soldered)
⏱ Time Adjustment: Simple time control with an easy-to-use trimmer.
⚙️ Working Principle:
- When powered on, the delay timer begins.
- After the set time, the relay activates:
- NO Contact: Closes to complete the circuit.
- NC Contact: Opens to break the circuit.
- Cutting power resets the timer, which starts over when powered on again.
🧰 Application: Ideal for delaying activation of car lights:
- Example: After ignition, the timer waits (1-90 seconds) to activate front lights, conserving battery. Lights turn off instantly when ignition is cut.
📦 Package Contents:
- Mini Time Relay
- Instructions for Use with a detailed wiring diagram for easy setup.
Make your setup smarter, simpler, and battery-friendly with this reliable timer! 🚗💡
