Mini differential thermostat home solar hot water heating pump controller 12-220V 10A box

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal: Click here to see the best price

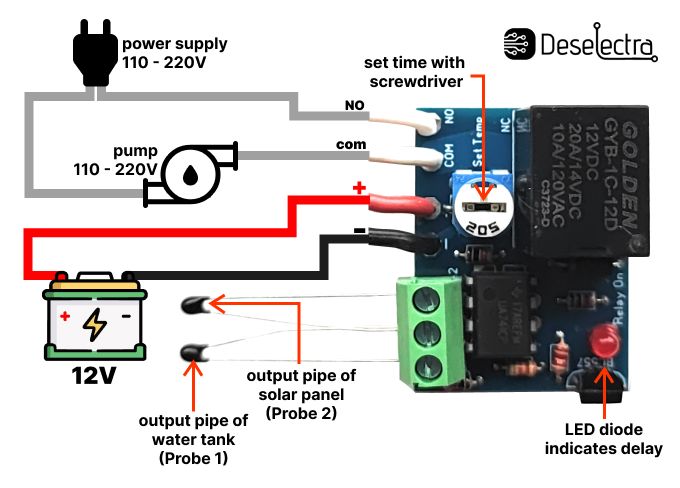

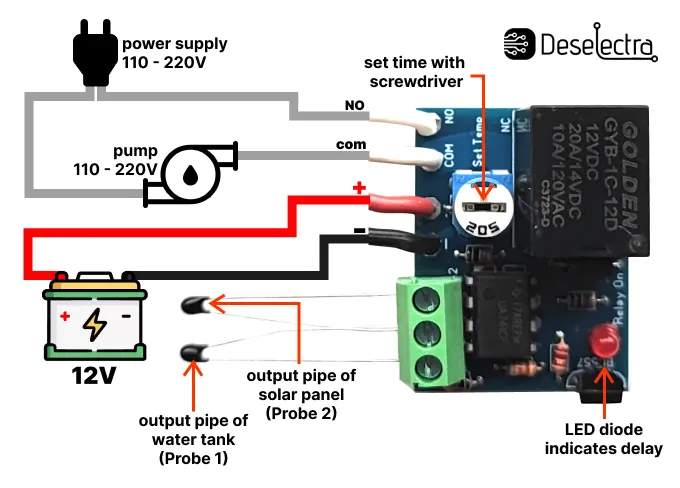

110 - 220V

wiring diagram of mini differential timer

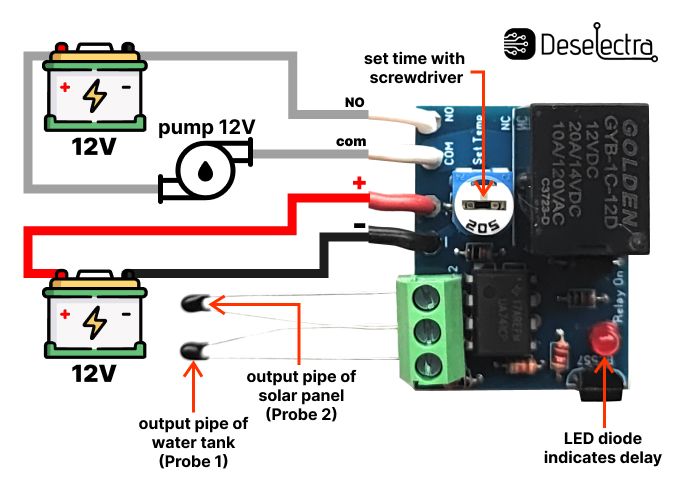

12V

wiring diagram of mini differential timer



Technical Specifications:

  1. Voltage: 12V DC

    • Red Wire: 12V+
    • Black Wire: 12V-

  2. Temperature Range: 1°C to 90°C

  3. Differential Range: 0.3°C to 50°C (adjustable via trimmer)

  4. Relay Output:

    • 10A/125V DC
    • 10A/250V AC
    • 10A/12V DC

Note: The output (two white wires) is a normally open contact. No voltage is present at the output until the relay is activated.
