Item Description:

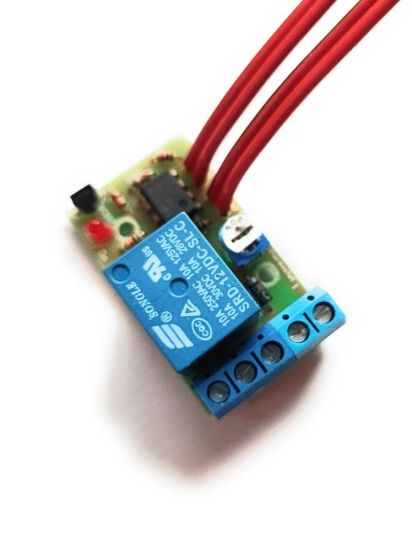

Introducing our top-of-the-line Differential Electronic Thermostat designed specifically for solar water heating systems. With precise temperature control and easy installation, this controller is perfect for optimizing the efficiency of your setup.
Technical Data:
- Voltage: 12V DC
- Temperature Range: 10°C to 90°C
- Differential Range: 0.3°C to 50°C (adjustable with trimmer)
- Relay Output:
- 10A/125V DC
- 10A/250V AC
- 10A/12V DC
- Sensors: NTC 10K (not waterproof)
Plate Dimensions: 45x25 mm
Probe Wire Length: 25 cm (extendable up to 10 m)
LED Indication: Indicates working load
Method of Operation: Whenever Probe 2 detects a higher temperature than Probe 1, the relay's Normally Open (NO) contact closes, activating the LED. The output remains on until the temperature difference between the two probes falls within the set differential range.
Setting the Differential Temperature: Adjust the trimmer until the LED turns off. This sets the thermostat to the lowest differential temperature. Rotating it counterclockwise increases the differential temperature. Note that the trimmer may require precise adjustments due to its sensitivity.
Package Content:
Upgrade your solar water heating system today with our Differential Electronic Thermostat and experience improved efficiency and control like never before! 🔧🌟
