1. DC Motor Reverse Polarity Cyclic Timer Switch, 900/960s, 1A, 24V

   Description:

   This cyclic timer relay allows you to control a small DC motor with adjustable on/off times and automatic polarity reversal for each cycle.

   Timing Settings:

   • TIME 1: Adjustable from 9 to 900 seconds
   • TIME 2: Adjustable from 2 to 960 seconds

   Features:

   • Power Supply: 24V DC
   • Output: 24V DC, 1A (polarity reverses with each cycle)
   • Relay: DPDT, 1A/24V DC (supports motors up to 12W)
   • Dimensions: 53 mm x 23 mm x 21 mm

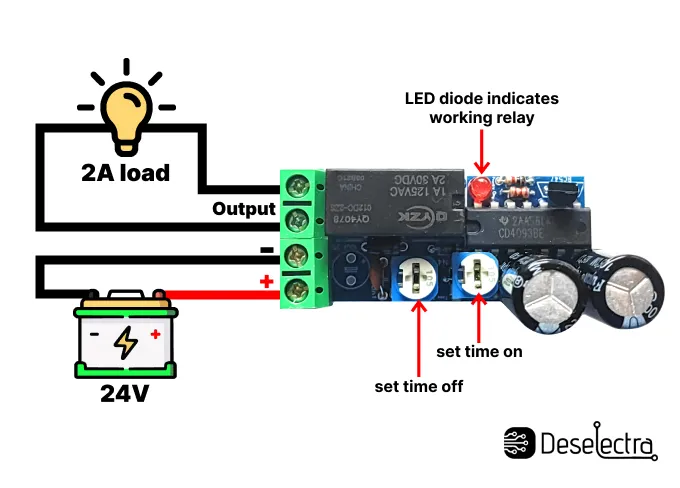

   • Adjustable times via two trimmers

   How It Works:

   When powered on, the module outputs 24V for the set TIME 1. At the end of this time, the polarity reverses, powering the output for the set TIME 2. This cycle continues with alternating polarity until the power is cut.

   Applications:

   Ideal for operating small DC motors (up to 12W), this module changes the motor's rotation direction at each cycle, making it suitable for applications requiring repetitive forward and reverse motion.
