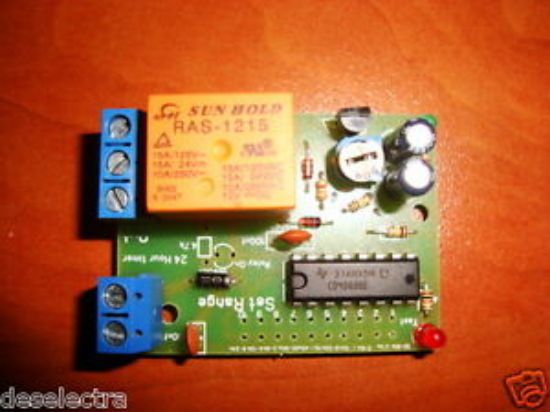

Adjustable Cyclic Timer Relay Switch – 25 sec to 31 hours with equal intervals, 12V/10A

Set delay times from 25 seconds to 31 hours and 17 minutes using the provided range table. Adjust the time with a trimmer for precise control.
Manufacturer: Deselectra
Old price: €15.00
€8.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Simplify and enhance your automation projects with our versatile Delay Timer Relay. Perfect for various applications, this relay allows you to customize delay start times with ease and precision.

🛠️ Customizable Delay Range: Set delay times from 25 seconds to 31 hours and 17 minutes using the provided range table. Adjust the time with a trimmer for precise control.

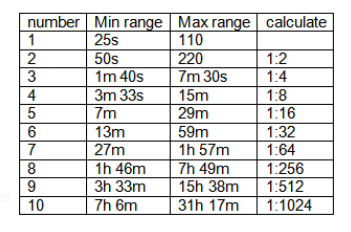

setup table



📏 Compact Dimensions:

Length: 50 mm
  • Width: 37 mm
  • Height: 20 mm

🔌 Versatile Terminals:

  • 12V Input (Protected against reverse supply voltage)
  • Normally Open (NO) Contact
  • Normally Closed (NC) Contact
  • Common Terminal

Robust Power Supply: Operates on 12V DC with a relay rated at:

  • 10A 250V AC
  • 15A 125V DC
  • 15A 24V DC

💡 LED Indicators:

  • Green LED: Flashes to indicate delay progress.
  • Red LED: Lights up when the relay is activated.

🔧 Easy to Adjust: The delay range can be set by making a track between terminals at the bottom of the plate, numbered 1 to 10, according to the setup table. Fine-tune the delay time using the trimmer.

📝 Example Setup: For a 9-hour delay, choose range number 9 (32,400 seconds). Divide this by 512 (approx. 63 seconds). Adjust the trimmer so the red LED lights up 63 seconds after power is applied, activating the relay after about 9 hours.

Method of Operation:

  1. Power on the device to start the delay time.
  2. The green LED flashes, indicating delay progress.
  3. When the set time ends, the relay activates, the green LED lights up, and the NO contact closes while the NC contact opens.
  4. When the delay time ends, the relay is deactivated for the set time (from 25 seconds to 31 hours)
  5. When the deactivated time ends, the relay is activated again for the same time and so on
  6. This cycle continues until the power supply is connected

📦 Package Contents:

  1. Timer
  2. Instruction Manual and Wiring Diagram

Upgrade your automation projects with precise timing and reliable performance. Order now and streamline your operations with our Adjustable Delay Timer Relay! 🕒🔧💡
