Product Description and User Guide

This time relay operates with an adjustable accuracy range of 3 to 750 seconds.

Plate Dimensions: 35mm x 18mm x 12mm
Box Dimensions: 40mm x 17mm x 21mm
Output: Direct 12V/1A

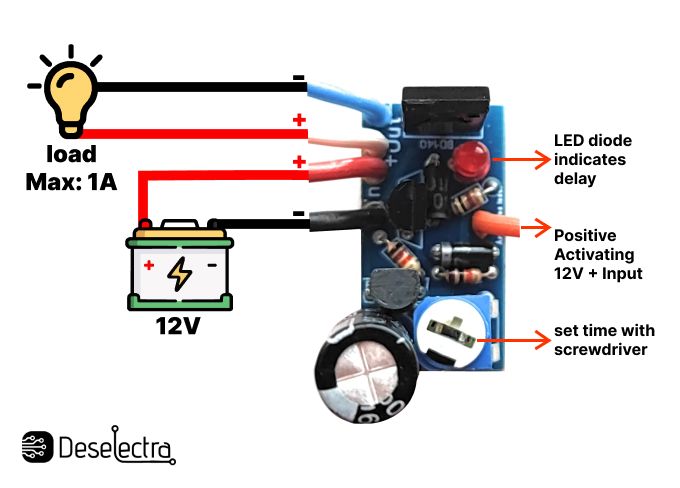

Wiring: Supplied with 10 cm wires:
- Red: Positive 12V+
- Black: Negative 12V-
- White: Output 12V+
- Blue: Output 12V-
- Orange: Activating 12V+ input

The relay features protection against reverse supply voltage and operates on a 12V DC power supply. The time delay is adjustable via a trimmer. The device consumes no power when in standby mode.

Principle of Operation:

Once powered on, the timer remains inactive until a 12V+ pulse is detected at the activating input (orange wire). Upon receiving the pulse, the timer is activated and maintains this state until the end of the pre-set time. If a new pulse is received, the cycle resets, and the timer is reactivated for the specified time.

Application Example – Delay-Off for Car LED Lights:

Orange wire should be connected to the contact switch.
Red and Black wires should be connected directly to the car battery (red to 12V+ and black to 12V-), via a 1A fuse.
White wire (positive) and Blue wire (negative) connect to the LED light.

When the contact switch is turned on, it will provide 12V+ to the timer, turning the lights on. When the contact switch is turned off, the timer will start the countdown, keeping the lights on for the pre-set time (up to 750 seconds) before they turn off.

Important Notes:

If the total power consumption of the lights exceeds 1A, an additional relay must be used in place of the bulb in the circuit to prevent damage to the timer.

Package Contents:

Time Relay
Instruction Manual and Wiring Diagram

Please follow this guide carefully for proper installation and use of the time relay.
