AC to DC Power Supply Converter Adapter, 220V AC to 12V DC, 20mA with Wires

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal:

Click here to see the best price

1. Technical Specifications

• Output Current: Up to 20mA at 12V

• Power Consumption: Approximately 30mA AC

• Design: Capacitive reactance-based circuit

• Dimensions: 40mm (L) x 27mm (W) x 21mm (H)

• Wiring: 10cm pre-installed wires

2. Features

• Energy-efficient operation with minimal heat generation

• Compatible with timers, switches, and thermostats

• Non-galvanic insulated design

• Protection against reverse supply voltage

• Integrated fuse for safety

3. Installation Instructions

1. Ensure that the power supply is disconnected before installation.

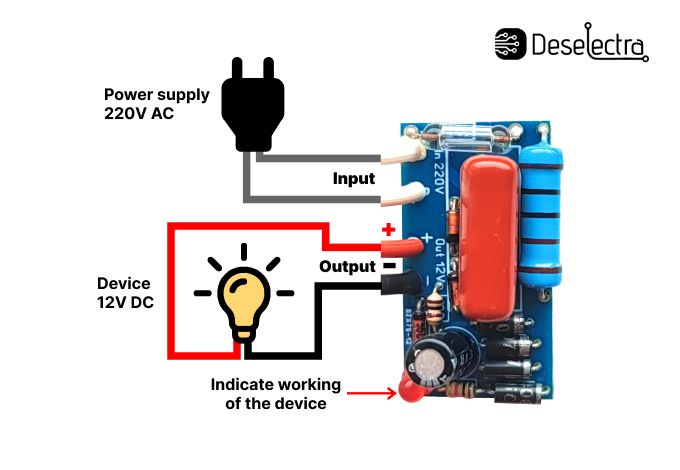

2. Connect the module according to the provided wiring diagram.

3. Secure the module within the included plastic enclosure.

4. Verify all connections before powering the circuit.

4. Safety Precautions

• Do not exceed the specified current and voltage ratings.

• Avoid exposure to moisture or extreme temperatures.

• Ensure proper insulation of all connections.

• Use only as intended for low-power electronic applications.

5. Package Contents

• Power supply module

• Plastic enclosure

• Connection wires

• Instruction manual with wiring diagram
