24V 1A airbag relay truck bus mini car timer switch 1 to 10 sec kit delay off

Product Description: CAR/TRUCK Airbag Light Timer Switch (Time Relay) 1 to 10 Sec Delay Off - 24V, 1A, 12W

This time relay is designed to control the delay-off function of airbag warning lights in cars and trucks, allowing the light to remain on briefly before turning off.

• Adjustable Delay Time: 1 to 10 seconds, controlled via a 100K trimmer (rotate clockwise to increase time).
• LED Indicator: Shows active status.
• Max Load: Supports up to 24V, 1A; can be extended to 1.5A with a heat sink.
• Power Supply: 24V DC, with reverse voltage protection (Red: +, Black: -).
• Output Wires: White (+) and Blue (-) connect to the airbag light.
• Dimensions: 25mm x 28mm x 17mm.

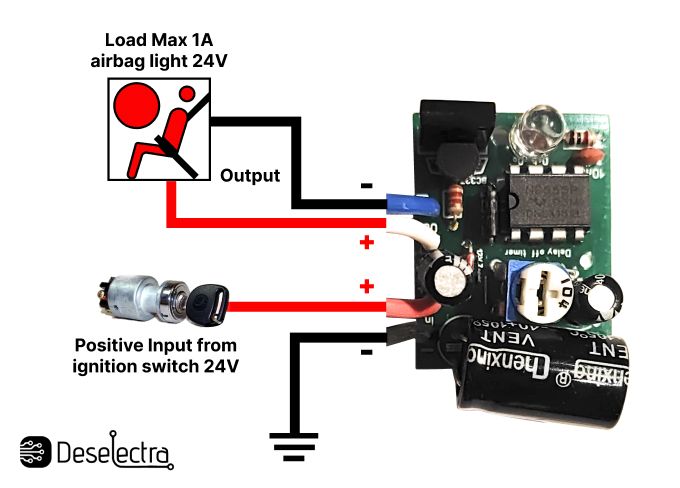

How it Works:

1. Connect the red wire to the 24V+ contact switch and the black wire to the ground.
2. The white and blue wires connect to the airbag light.
3. When powered on, the module sends a 24V signal to the airbag light, which stays on for the set delay time before turning off.
4. Restarting the power supply restarts the timing cycle.
