Electric Reverse Polarity Garage Door/Gate Opener Controller Module 12V 2A (Continuous Signal)

This 12VDC controller is designed to control small electric doors like chicken coops, garages, and gates.

Features:

• Built-in timers to open and close with polarity reversal
• Activates with a continuous 12V+ signal
• LED indicators:
  • Green for one direction
  • Red for the opposite direction
• Protection against simultaneous pulse inputs

Specifications:

• Dimensions (with box):
  • Length: 55 mm
  • Width: 35 mm
  • Height: 23 mm
• Power Supply: 12V DC (reverse polarity protected)
  • Wired with red (positive) and black (negative) wires
  • Requires a 12V, 4A adapter for stable performance
• Output: Reversed 12V DC, 2A (white wires)
• Trigger Signal Wires: Yellow (positive signal to start timers)
• Wire Length: 10 cm
• Relays: 2A/12V DC
• Timer Adjustment: Two blue/white trimmers (clockwise to increase time)

Important: Use a 12V, 4A adapter to prevent module restarts due to voltage drops when the motor starts.

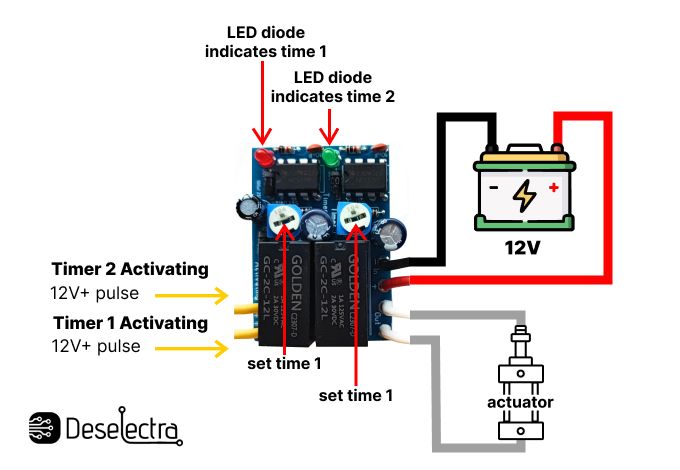

How It Works:

1. Connect red and black wires to the power supply (minimum 4A adapter).
2. Connect the two white wires to the motor (max 2A).
3. When the yellow wire for timer 1 receives a 12V+ signal, the module powers the motor for the set time, then stops.
4. When the yellow wire for timer 2 receives a 12V+ signal, the module reverses polarity to move the motor in the opposite direction for the set time, then stops.
