10 Seat Sensor Emulator Passenger Belt Simulator 1.8/2.2/2.7/3.3/3.9 R Ohm

Instructions for Using Car SRS Airbag Emulator Repair Bypass Resistors

Product Description:
This set includes 10 pieces of Airbag SRS System simulator resistors, ready for immediate use in car airbag repair and diagnostics.

Resistor Set Composition:

• 2 x 1.8 Ohm
• 2 x 2.2 Ohm
• 2 x 2.7 Ohm
• 2 x 3.3 Ohm
• 2 x 3.9 Ohm

This tool is ideal for testing or bypassing various airbags or seat belt pretensioners, especially when the specific resistance of the original part is unknown. The resistors are suitable for most Airbag SRS systems.

Specifications:

• Leg distance: approximately 2.54mm / 0.1 inch
• Leg length: 6 mm
• Total length: 20 mm

Purpose and Application:
These emulator resistors are for diagnostic and troubleshooting purposes only. They simulate a connected airbag or seat belt pretensioner, which, if no other issues exist, will cause the airbag light to turn off. This makes them useful for:

• Diagnosing and repairing airbag systems before installing a new airbag.
• Confirming proper function of the airbag system without an airbag or when the original is not available.

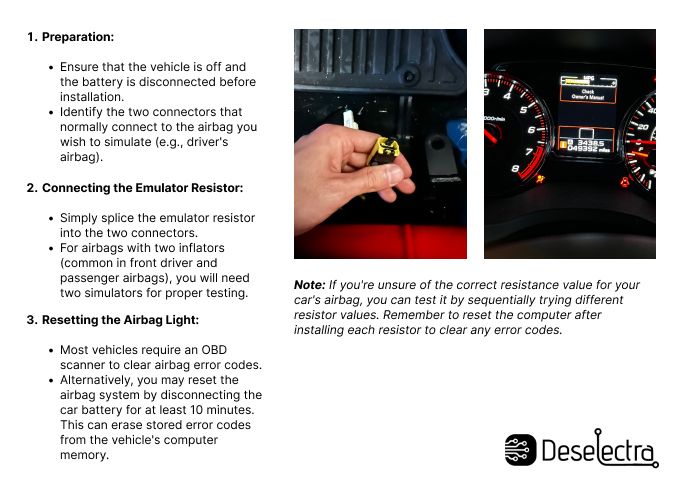

Instructions for Use:

Preparation:

• Ensure that the vehicle is off and the battery is disconnected before installation.
• Identify the two connectors that normally connect to the airbag you wish to simulate (e.g., driver's airbag).

Connecting the Emulator Resistor:

• Simply splice the emulator resistor into the two connectors.
• For airbags with two inflators (common in front driver and passenger airbags), you will need two simulators for proper testing.

Resetting the Airbag Light:

• Most vehicles require an OBD scanner to clear airbag error codes.
• Alternatively, you may reset the airbag system by disconnecting the car battery for at least 10 minutes. This can erase stored error codes from the vehicle's computer memory.

Applicable for Simulation of:

• Driver Airbag
• Passenger Airbag
• Side Airbag
• Curtain Airbag

Important Note:
This product is for diagnostic use only and is not intended for permanent installation. Always follow up with a certified technician for proper airbag repairs and replacement.
