Mini differential thermostat home solar hot water heating pump controller 12-220V 10A box

Limited Time Offer!

Hurry, our best price won’t last long! Click to check out the exclusive deal: Click here to see the best price

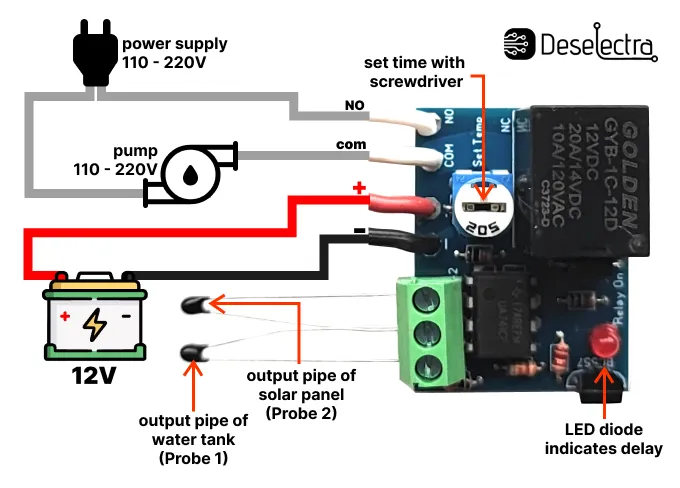

110 - 220V

12V

Technical Specifications:

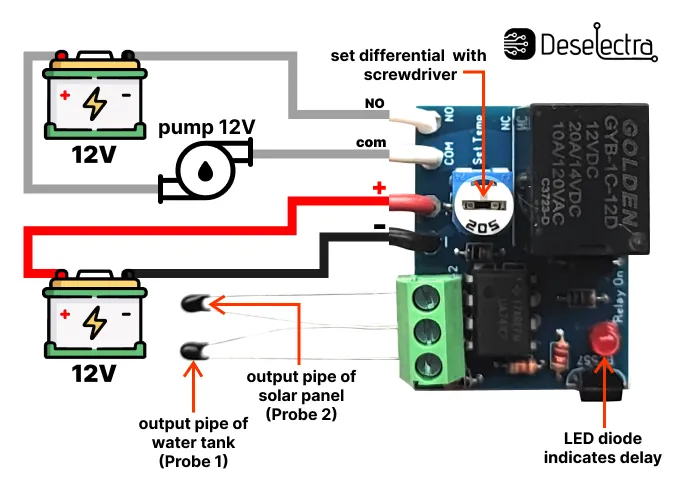

Voltage: 12V DC
- Red Wire: 12V+
- Black Wire: 12V-
Temperature Range: 1°C to 90°C
Differential Range: 0.3°C to 50°C (adjustable via trimmer)
Relay Output:
- 10A/125V DC
- 10A/250V AC
- 10A/12V DC

Note: The output (two white wires) is a normally open contact. No voltage is present at the output until the relay is activated.

Deselectra electronics
