- Power supply - 12 V DC.
- Time interval from 1 sec. to 270 sec.
- Maximum peak current - 10А/250V.
- LED indication for operation of the timer.
- START with positive pulse at red wire(12V+)
- Dimensions: 55mm х 26mm x 20
- Timer have normally open and closed contacts.
Principe of work:
When power is on, the timer waiting for 12V+ pulse at activating contact ( red wire), to start delay cycle. When 12V+ is received /normally open contact is closed and normally closed contact is open/ and keep that position, until end of set time. After the delay time end, the timer is again in standby state.

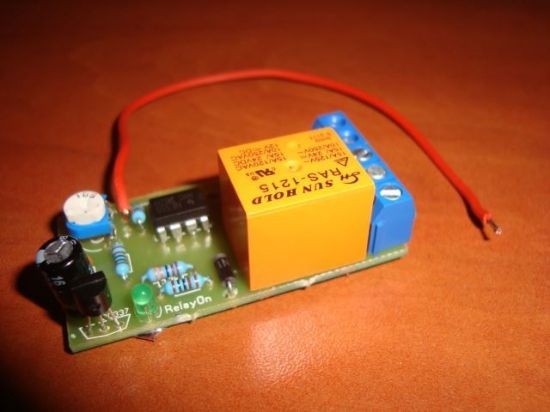

Device don't have plastic box, only plate, as see on the picture.
The kit is assembled
1. Time Relay
2. Instruction for use and wiring diagram.
