Item Description
Time relay with accuracy from 1 to 40 seconds.
Dimensions:
- length - 22 mm- width 20 mm- height 23 mm
Wired with 10 cm wires:
Power: + RED, - WHITE. Have protection against reverse supply voltage.
Normally open contact - TWO Monochrome wires/ OJ and Not /
If you need a normally closed contact can use the Ob and Nzat -
All wires is soldered and relay is assembled and tested.
Power supply - 12V DC
Relay: 15А/125V DC 15A/24V DC or AC 10A/250V AC
Time is adjusted by trimmer PR - 100K
Principe of work:
When power is on, the relay is activated and keep that position, until end of set time.
By restart power supply - cycle repeat.

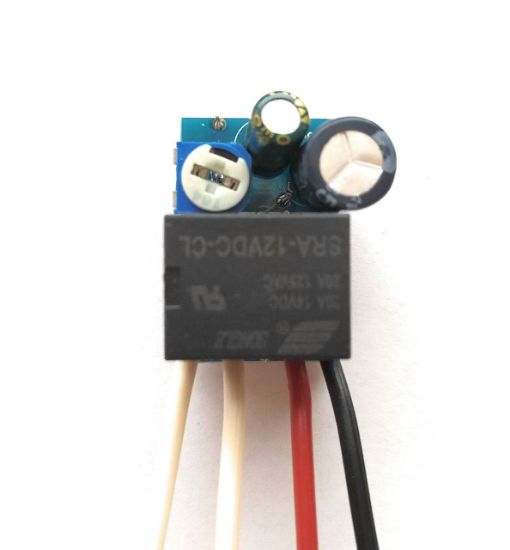

Device don't have plastic box, only plate, as see on the picture.
Package contents:
1. SMD Time Relay
2. Instruction for use and wiring diagram.
